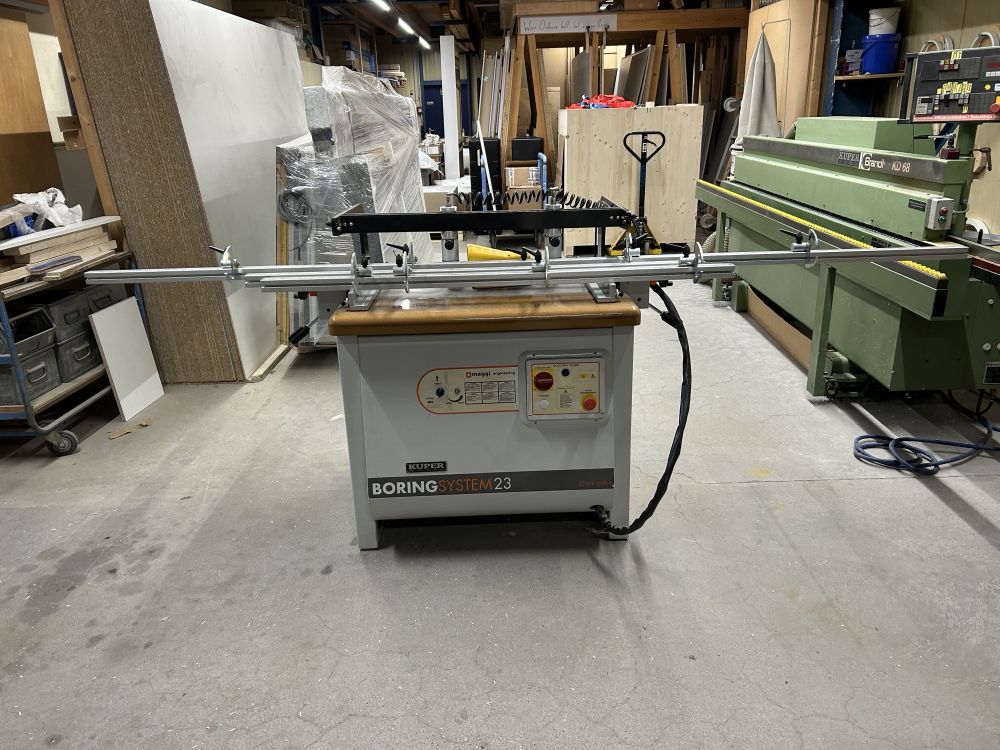

Maggi Boring System 23

Dowel drilling machine
Used machine

Features and technical data:
- 400V-50HZ-3Ph motor, 1.5 kW
- Pneumatic single-head drilling machine with 23 spindles
- Aluminum guide rail with 4 stops (2 profiles right/left, 1500 mm each)
- with quick-release chuck
- 2 patented, accident-proof pressure clamping cylinders
- Connection for dust extraction system according to EC standards
- Aluminum drill beam, spindle spacing 32 mm
- MDF and cast iron worktable
- Patented spiral system for fine adjustment of the drilling depth
- Pneumatic drill head oscillation with locking in any position between 0° and 90°
- Foldable side stops with fine adjustment via counters with decimal display
- Drilling height adjustment via counters with decimal display
- Back gauge, travel max. up to 300 mm
- Fixed stops 37 mm for inserting Hinge drill bits
- Compliant with EC standards
- Max. drilling width 704 mm
- Max. drilling depth 65 mm
- Max. workpiece width 960 mm
- Max. workpiece length 3000 mm
- Max. workpiece thickness 60 mm
