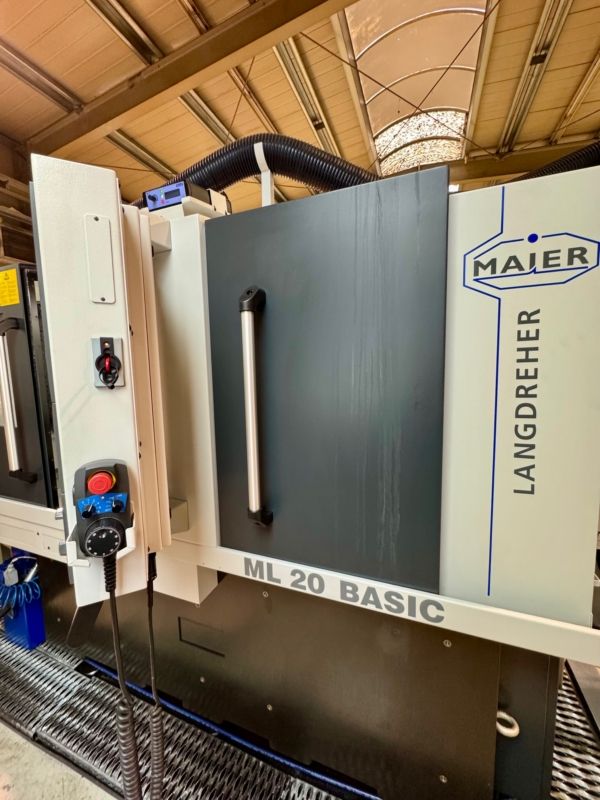

Maier FANUC 31i-B 8,000 RPM ML 20 C5Y2 CNC Longitudinal Lathe Basic 8 Axis

Axes: 8
Turning Diameter Over Bed: 32 mm
Spindle Bore: 20 mm
Spindle Stroke Channel 1/Z1: 220 mm
Main Spindle Speed: 8,000 RPM
Main Spindle Motor Power: 5.5 / 3.7 kW
Counter Spindle Bore: 20 mm
Counter Spindle Speed Range: 8,000 RPM
Counter Spindle Turning Length (Channel 2/Z2): 240 mm
Collets: 161E
Drive Motor Power: 5.5 / 3.5 kW
Total Power Requirement: 19.4 kW / 35 A
Machine Weight: 4.2 t
Footprint: 8.0 x 2.7 x 2.2 m
CNC Control: FANUC 31i-B
Counter Spindle: 1 unit
NC C-Axis: On main and counter spindles
Guide Channel: DM12
Tool Holders: 5 fixed turning tool holders, 12 x 12 mm
Bar Loading Magazine: FMB Turbo Ø 3-36, 2020
Chip Conveyor
Electronic Handwheel
High-Pressure System: KNOLL, 50 bar with paper band filter
Fire Protection System: Kraft & Bauer
Extraction System
CE Certification
Documentation
