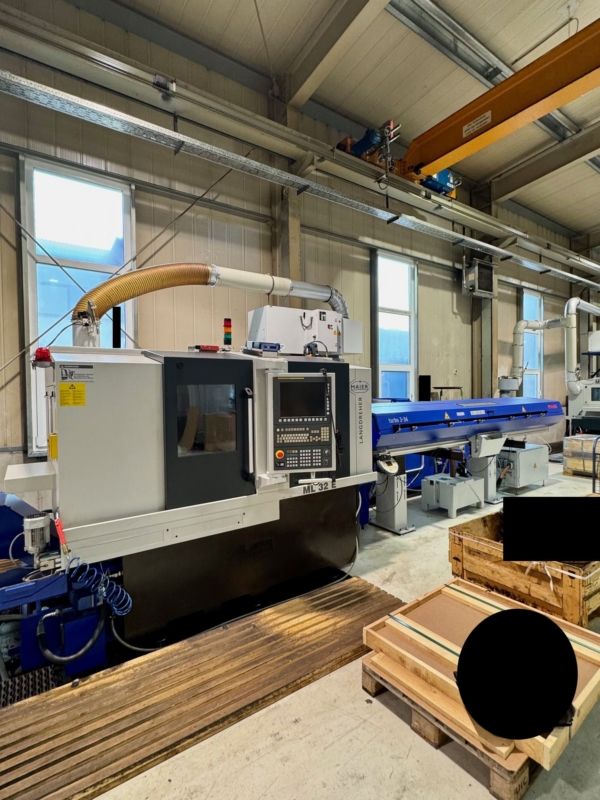

Maier FANUC T31i 6,000 rpm ML 32E 2 Axis

X-Axis Count: 11
Turning Diameter Over Bed: 32 mm
Spindle Bore: 34 mm
Spindle Stroke: 220 mm
Main Spindle Speed: 6,000 rpm
Maximum Turning Length: 340 mm
Collets: 1536E
Drive Motor Power: 5.5/3.5 kW
Total Power Requirement: 28.7 kW, 60 A
Machine Weight: 4,400 kg
Footprint: 8.0 x 2.7 x 2.3 m
CNC Control: FANUC T31i
Counter Spindle: 1
NC C-Axis on Main and Counter Spindles
Tool Holders for 6 Fixed Turning Tools, Cross Section 12 x 12 mm
Bar Loading Magazine FMB Turbo Ø 3-36, 2016
Guide Channel DM12 + DM25
Chip Conveyor
Electronic Handwheel
High-Pressure System KNOLL (Pump 1: 1–120 bar, Pump 2: up to 50 bar) with Paper Band Filter
Fire Protection System KRAFT & BAUER
WPM4 Tool and Process Monitoring "Genior Modular-Fully Automatic"
Extraction System
CE Marking
Documentation
