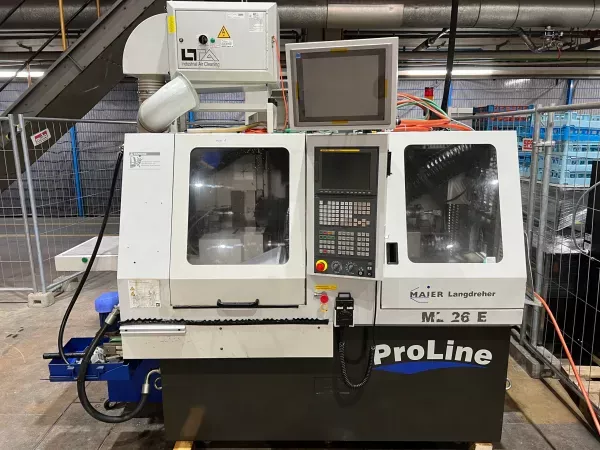

Maier Maier Pro GE-Fanuc 6000 rpm ML 26 E CNC LATHE 2 Axis

Number of axes 11
Spindle bore 32 mm
Rapid traverse 32 m/min
Control Maier Pro GE-Fanuc
Guide bushing 451.001
Main spindle passage 26 mm
Main spindle C-axis Yes
Main spindle mechanical indexing 5° Yes
Headstock stroke 220 mm
Main spindle speed 0–6000 rpm
Main spindle power 3.7 kW / 5.5 kW (7.5 kW)
Main spindle collet 161E
Counter spindle passage 26 mm
Counter spindle C-axis Yes
Counter spindle mechanical indexing 5° Yes
Counter spindle travel Z 220 mm
Counter spindle speed 0–6000 rpm
Counter spindle power 1.1 kW
Counter spindle collet 161E
Basic holders for turning tools 5 pcs. 16 x 16 Yes
Number of driven tools 4
Driven tool power 0.5 kW
Back machining drive power 0.5 kW
Back machining number of tools 4
Back machining driven tools 4
Back machining collets ER16
Turret number of tools 16
Turret number of driven tools 8
Turret driven tool power 0.5 kW
Turret C-axis 360°
Turret Z-axis travel 175 mm
Turret X-axis travel 200 mm
Turret collets ER16
Oil mist separator
Transformer
Chip conveyor
High-pressure pump with belt filter system
Fire extinguishing system
LNS bar loader
Complete documentation
