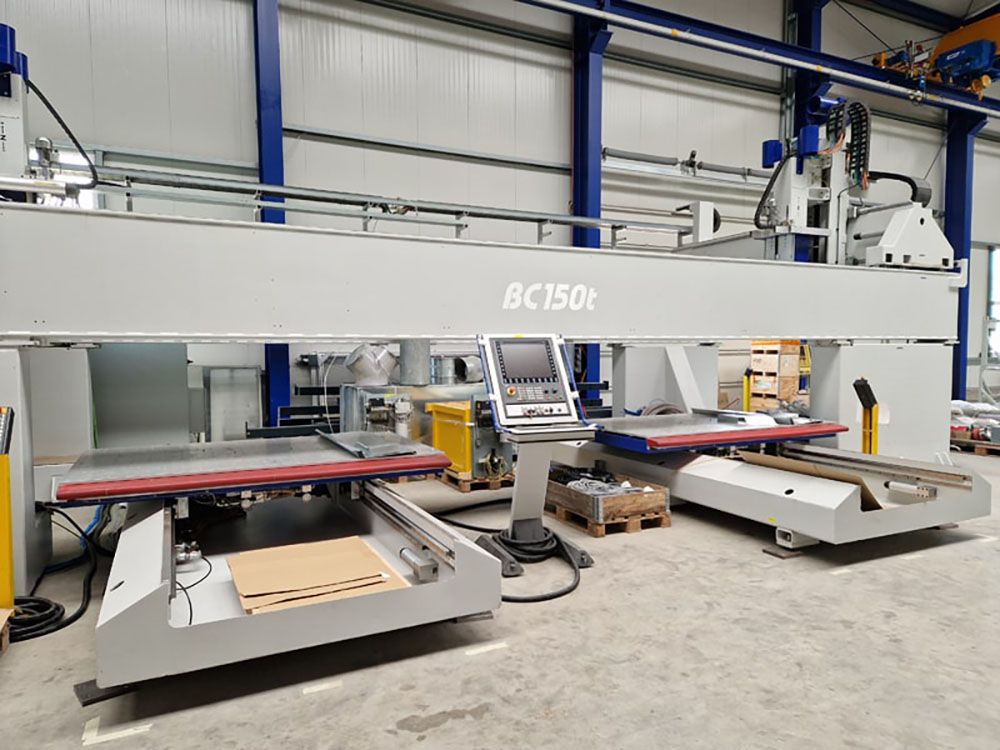

Maka BC 150t compakt 5-axis

Machine designation: 5-axis CNC machining center for machining aluminum and plastic.
4-column gantry (bridge center), 2 tool supports

Working areas in 5-axis operation, with tool diameter 160 mm / length 160 mm:
2 each:
Y-axis: 1,500 mm
X-axis: 2,500 mm
Z-axis: 650 mm / with fixture height 180 mm

Couplable tables for machining large components.
Extended extension stroke for loading and unloading.

Rapid traverse speed:
X/Y/Z-axis 60 m/min. Acceleration: 3 m/s²
Rotation axis 540° / Swivel axis 196° (+/- 98°)

Table design:
2 x aluminum surface tables measuring 2,500 x 1,500 mm
M10 threaded bushings and centering bolts in the tabletop
3 x vacuum clamping circuits per table
3 x pneumatic clamping circuits per table

Milling unit:
2 x universal units for 5-axis milling with 50° inclined head, HSF F63 tool holder, max. power 12.5 kW (S1),
continuously variable speed up to 24,000 rpm, water-cooled milling spindle.
1 NC height-adjustable chip collection system per milling unit, with slatted curtain.

Tool changer:
2 x rotary table tool magazines with 20 positions.

Control system:
1 x Siemens SINUMERIK 840D SL machine control system
1 x Siemens OP 19 PCU control unit
Operating panel with 19" display, full keyboard, and membrane keypad.
1 x additional Siemens HT 8 control unit
Portable handheld control panel with 7.5" touchscreen, version with handwheel.

Occupational safety:
1 x soundproof booth.
2 x automatic loading gates with viewing windows.
The loading and unloading area is protected by light barriers and bumpers on the tables.

Measuring probes: 2 x 3D radio-controlled measuring probes, with HSK F63 tool holder, for changing from the tool magazine.

Minimal quantity lubrication:
2 x minimum quantity lubrication systems.
2 x spray nozzles per milling unit, each individually controllable via the M function.

Table blow-off system:
2 x Airknife table blow-off systems, for blowing off the tables during exit from the machining area. Limited in coupled operation.

Availability:
The machine is assembled and ready for operation and can be inspected.
Tool holders and machining tools are not included in the scope of delivery.
Used machine, without any warranty or guarantee.
