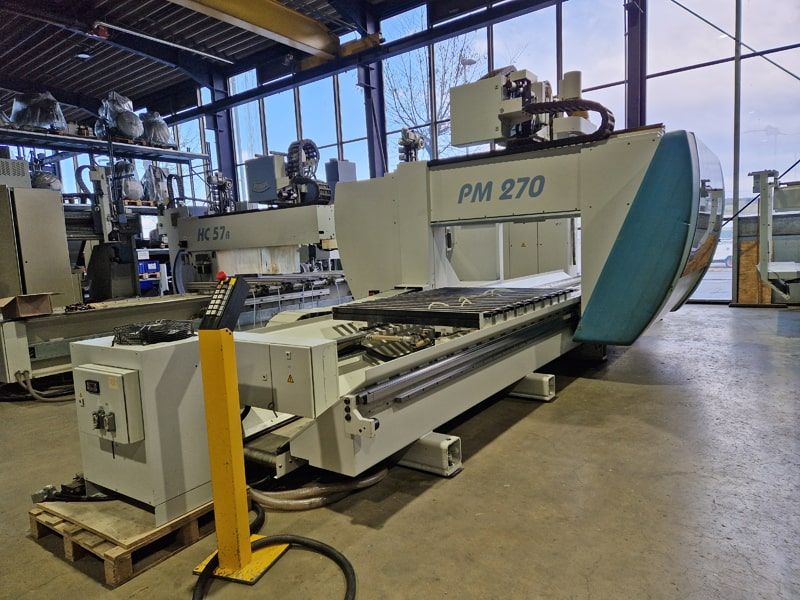

Maka PM 270 R 5-axis

Machine designation: BWO 900C CNC control, for 5-axis machining.
Integrated PC with 1 MB memory and 3.5" floppy disk drive.
Mobile control panel stand.

– Working areas in 5-axis operation, with tool diameter 60 mm / length 160 mm:
Y-axis: 5,600 mm
X-axis: 1,350 mm
Z-axis: 420 mm / at 180 mm fixture height (vacuum suction cup)

– Working areas in 3-axis operation, with tool diameter 60 mm / length 160 mm:
Y-axis: 6,000 mm
X-axis: 1,350 mm
Z-axis: 420 mm / at 180 mm fixture height (vacuum suction cup)

A-axis 540° (rotary axis) B-axis 200° (swivel axis +/- 100°)
Rapid traverse speed X/Y-axis 45 m/min. Z-axis 24 m/min. A/B-axis 10 m/min.

1 universal unit for 5-axis milling with a 50° inclined head, max. power 12.5 kW, continuously variable speed up to 17,000 rpm, water-cooled milling spindle.
1 NC height-adjustable chip collection system with slat curtain

Milling unit:
– 1 universal unit for 5-axis milling with a 50° inclined head, max. power 12.5 kW, continuously variable speed up to 17,000 rpm, water-cooled milling spindle.
– 1 NC height-adjustable chip collection system with slat curtain.

Tool magazine:
– ISO 40 tool interface for automatic tool change system.
– 1 chain-type tool magazine with 32 positions for tools up to 90 mm in diameter, up to 160 mm with sorted storage. (Three workstations are required for this.)

Machine table:
– 10 support tubes on linear guides with pneumatic release for quick positioning.
– 2 control circuits for "lifting/lowering" stops
– 2 control circuits for "lifting/lowering" slide rails
– 2 control circuits for "clamping/unclamping" pneumatics
– 2 vacuum control circuits with clamping buttons and automatic reset via CNC programming.
– 1 chip conveyor belt integrated into the base frame for removing chips and small waste up to a maximum of approximately 100 x 100 x 100 mm.

Tools:
Tools are not included in the scope of delivery! Upon request, the system can be delivered with various tool holders.
We would be happy to provide you with a separate quote for this.

Vacuum supply:
– 1 vacuum pump, approx. 140 m³ suction capacity, including a 250-liter tank for rapid vacuum build-up.
– 10 vacuum supports with various suction cups.
– Various clamping devices for posts and curved sections.
– Raise/lower stops for positioning components.

Other:
– Automatic central lubrication.
– Control cabinet with air conditioning unit.
– Projection laser.

Work safety:
– Mobile protective cabin with safety bumpers on the operator side.

Design/Version:
5-axis CNC machining center for machining wood, plastic, and aluminum.
Machine in a mobile gantry design with rack and pinion drive.
