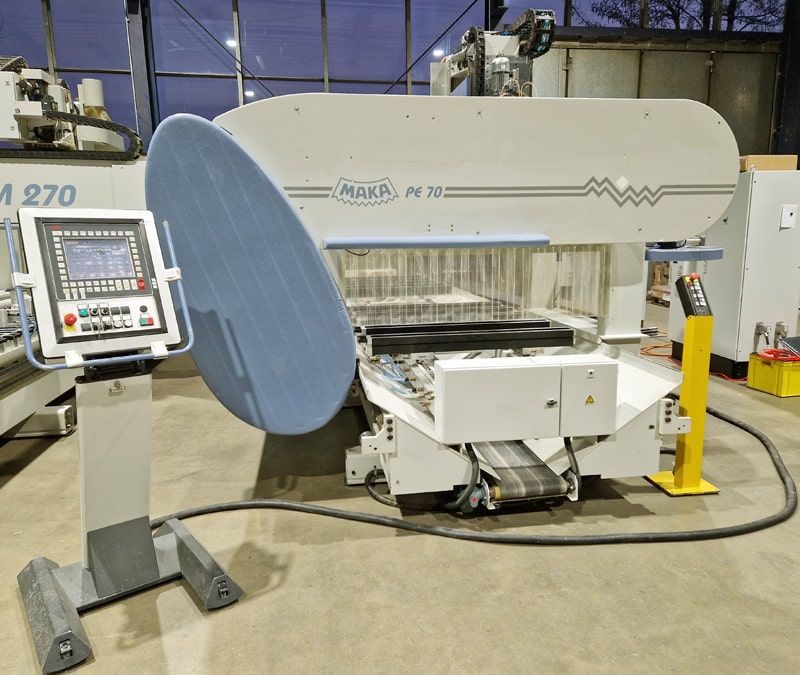

Maka PE 70 5-axis

Description: 5-axis CNC machining center
Type of offer: Used machine

Technical specifications:
Machine description: BWO 920 CNC control for 5-axis machining.
10.4" LCD display
2 MB NC memory, mobile control panel.

– Working areas in 5-axis operation, with tool diameter 60 mm / length 160 mm:
Y-axis: 5,500 mm
X-axis: 1,250 mm
Z-axis: 300 mm / at 180 mm installation height (top edge of vacuum cup)

– Working areas in 3-axis operation, with tool diameter 60 mm / length 160 mm:
Y-axis: 5,900 mm
X-axis: 1,250 mm
Z-axis: 300 mm / at 180 mm installation height (top edge of vacuum cup)

A-axis 540° (rotation axis) B-axis 196° (swivel axis +/- 98°)
Rapid traverse speed X/Y-axis 45 m/min. Z-axis 24 m/min. A/B-axis 10 m/min.

Milling unit:
– 1 universal unit for 5-axis milling with 50° inclined head, power 7.5 kW (S1) 10 kW (S6), continuously variable speed up to 22,000 rpm, water-cooled HSK-F63 milling spindle.
– 1 NC height-adjustable chip collection system with slatted curtain.

Tool magazine:
– HSK-F63 tool interface for automatic tool changing system.
– 1 horizontal drum magazine with 20 positions for tools up to 90 mm in diameter, up to 160 mm in size with sorted storage. (Three positions are required for this.)

Machine table:
– 10 support tubes on linear guides with pneumatic release device for quick positioning.
– 2 control circuits for "Lift/Lower" stops
– 2 control circuits for "Lift/Lower" slide rails
– 2 control circuits for "Clamp/Release" pneumatics
– 2 vacuum control circuits with clamping buttons and automatic reset via CNC programming.
– 1 chip conveyor belt integrated into the base frame for removing chips and small waste up to a maximum of approximately 100 x 100 x 100 mm.

Vacuum supply:
– Machine equipped with a vacuum system.
– 2 vacuum clamping circuits
– 1 vacuum pump, suction capacity per vacuum pump approx. 130 m³/h, with tank.
– Vacuum supports with various suction cups.

Other:
– Automatic central lubrication.
– Control cabinet with air conditioning unit.

Occupational safety:
– Mobile protective cabin with safety bumpers on the operator side.

Repairs/Maintenance before delivery:
– New maintenance.
– New slatted blind on the gantry
– New sliding window
– New Y-axis energy chain
– New Z-axis energy chain
– Replace various cables and air hoses.

Design/Version:
5-axis CNC machining center for machining wood and plastic.
Machine in mobile gantry design, with rack and pinion drive.
