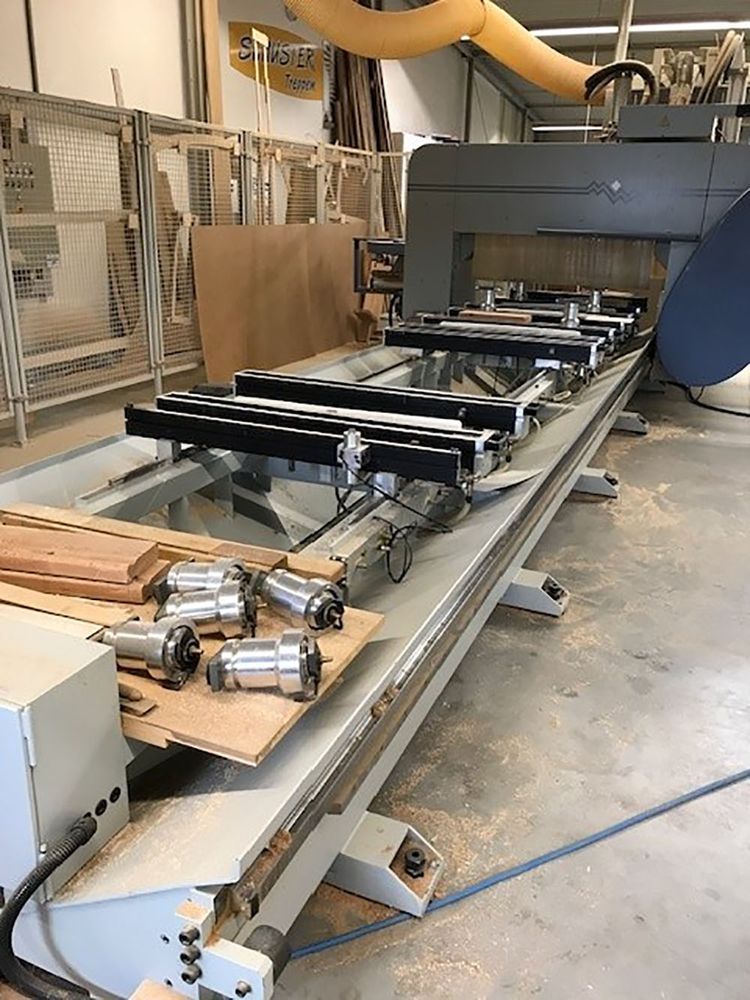

Maka PE 75 5-Axis

5-Axis CNC Machining Center
Used Machine
Condition: Currently in production

Features and Technical Data:
CNC Control: Siemens 840D
Max. Travels of Controlled Axes:
X = 1800 mm
Y = 6590 mm
Z = 460 mm
A = ±90 degrees
C = ±270 degrees

HSD Milling Unit with 10 kW, liquid-cooled
Infinitely variable speed up to 24,000 rpm

Permanent grease lubrication
Tool Holder: HSK 63F

1 Multi-spindle drilling unit with pneumatic pre-stroke, mounted on the milling unit.
16 individually selectable vertical drilling spindles

1 horizontal double drilling spindle in the X-direction and 1 in the Y-direction
Drill chucks, each 10 mm in diameter

Note: Maximum workpiece length with the drilling unit = 900 mm with X/Y reference spindle
Milling unit and drilling unit with 200 mm extraction port, each with pneumatic shut-off valve, connecting to the customer's extraction system, 300 mm diameter

Tool changer:
1 drum tool magazine for 5-axis milling unit, 20 slots for tool diameters of 90 mm or max. 160 mm with sorted storage, maximum tool length 160 mm.
A saw blade with a maximum diameter of 300 mm can be stored and replaced, but it occupies 3 storage slots.
Special tool lengths up to a maximum of 180 mm are possible with a corresponding reduction in the working area. Maximum tool weight: 6 kg (including HSK chuck)
Total weight in magazine: approx. 60 kg. Magazine located at the unit's output position.

Machine table:
8 support beams, manually adjustable to the machine length, each beam with 1 retractable workpiece stop, fixed towards the operator.
Table surface divided into two clamping positions, per station:
- 1 length stop, pneumatically raise and lower
- 2 pneumatically raise and lower slide rails
- 1 vacuum clamping circuit

Workpiece positioning:
1 Maka laser system
Workpiece clamping:
1 vacuum pump, 128 m³/h, dry-running, with 250-liter intermediate tank.
16 vacuum suction cups, 110 mm diameter
Vacuum suction cup assortment for stair manufacturing, including touch valve.
1 clamping device for Posts/Curved Sections
Includes chip conveyor belt
Includes NC-Hops 5. Wop system
Includes front bumper protection and side and rear fences
Central lubrication
Rated power: 21 kW
Fuse: 63 A
