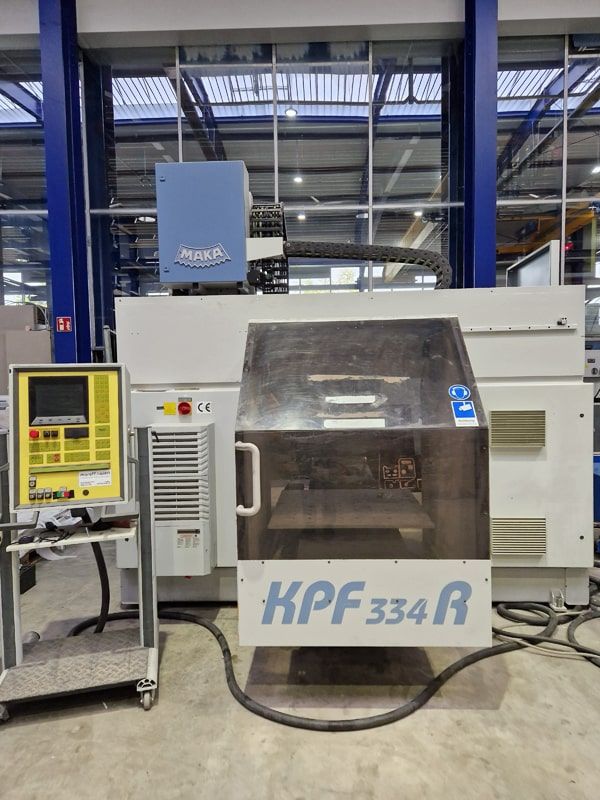

Maka KPF 334R

Machine name: CNC machining center
Working areas / cube dimensions:
with tool length 130 mm and diameter 60 mm
X-axis: 1,000 mm
Y-axis: 1,000 mm
Z-axis: 300 mm, with 120 mm fixture height
A-axis: 540°
B-axis: 200° (+/- 100°)

Rapid traverse speed:
X/Y-axis: 45 m/min.
Z-axis: 15 m/min.
A/B-axis: 10,000 °/min.

1 high-speed milling spindle HSD 6.8 kW,
speed continuously adjustable from 2,000 – 24,000 rpm,
rated power from 12,000 rpm.
With ceramic bearings, air-cooled.
SK 30 tool holder with tool changer.

1 mobile drum tool magazine for 10 tools up to 60 mm in diameter and – depending on the tool diameter
– 130 mm in length from the flat surface.
Aluminum tabletop 1,000 x 1,000 mm with grid holes
1 vacuum pump 54 m²/h, 1 vacuum clamping circuit

Automatic central lubrication system,
Control cabinet with air conditioning unit.

Workplace safety:
Sliding door for loading from the front, protective cabin for the rear of the machine
with a side access door, the cabin is open at the top.

Connection values:
Voltage: 400 V (max. +/- 5%) Frequency: 50 Hz
The use of a residual current device in the machine supply line is not permitted.

Operating temperature: 10 – 35°C
Pneumatics: 6 bar, approx. 18 m³/h

Design/Version:
Compact design with control cabinet integrated into the base frame.
BWO 900C CNC control, 1 MB memory, in the integrated PC.
