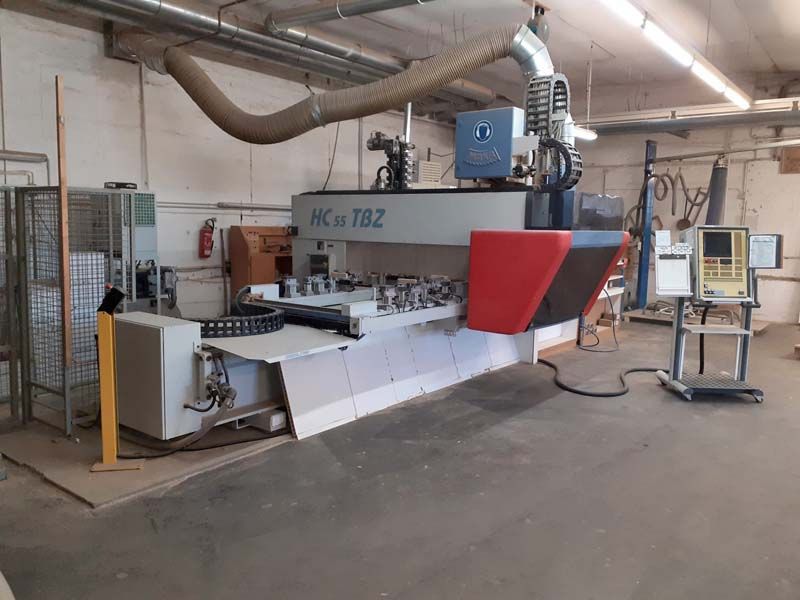

Maka HC-55-TBZ

Machine designation:
Door machining center for machining interior doors (fittings, light cutouts, spy hole milling, etc.)
CNC control BWO 900C, with 1 MB memory, integrated PC.

Working areas:
For door width: 250 – 1,280 mm
For door height: max. 2,500 mm
For door leaf thickness: max. 80 mm

Rapid traverse speed:
X- / Y-axis 45 m/min.
Z-axis 10 m/min.

1 universal milling unit SK40
with integrated A-swivel axis 190° (+/- 95°), in the X-axis direction for lock/hinge machining on both sides along the long edge of the door directly with the unit.
Water-cooled milling spindle, rated power 8 kW, available from 7,000 rpm, continuously variable speed
from 1,000–17,100 rpm, SK40 tool holder for automatic tool changing.

One chain-type tool magazine with 24 positions, for tools up to 90 mm in diameter,
with sorted storage up to a maximum of 160 mm in diameter, arranged at the machine's starting position.
Total tool length max. 200 mm from the spindle mount.

Milling spindle and two magazine positions configured for angle/probe heads with torque support.
Machine table with program-controlled width adjustment and width measurement for machining
with edge finishing tools to ensure consistent milling depth on both sides.

One set of infeed rollers for manual loading, automatically raised and lowered.

1 x longitudinal stop with pneumatic insertion stroke, mounted on the unit, for positioning according to the door length and thickness.

4 pneumatic stops, pivoting sideways, for doors with veneer/cover panel overhangs of up to 15 mm,
as well as with selectable height adjustment for changing stop heights for prefabricated doors (single- or double-rebated doors).

2 vacuum clamping lines, each line with 5 vacuum plates, 130/200 x 70 mm, with touch valve and blow-off device.
3 vacuum plates per line can be lowered according to the door height being processed.
1 vacuum pump with approx. 128 m³/h suction capacity, with 250-liter intermediate tank, for rapid vacuum build-up.
Automatic central lubrication, free-standing control cabinet with air conditioning unit.

Work safety:
Bumpers on both sides of the mobile portal, safety fence on the sides.
Various tools and tool holders can be included upon request.
