Makino A51 NX 4 Axis
Ref :
2715840-3-GO
Condition :
Used
Manufacturer :
Makino
Model :
A51 NX
Nb Of Axis :
4 Axis
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

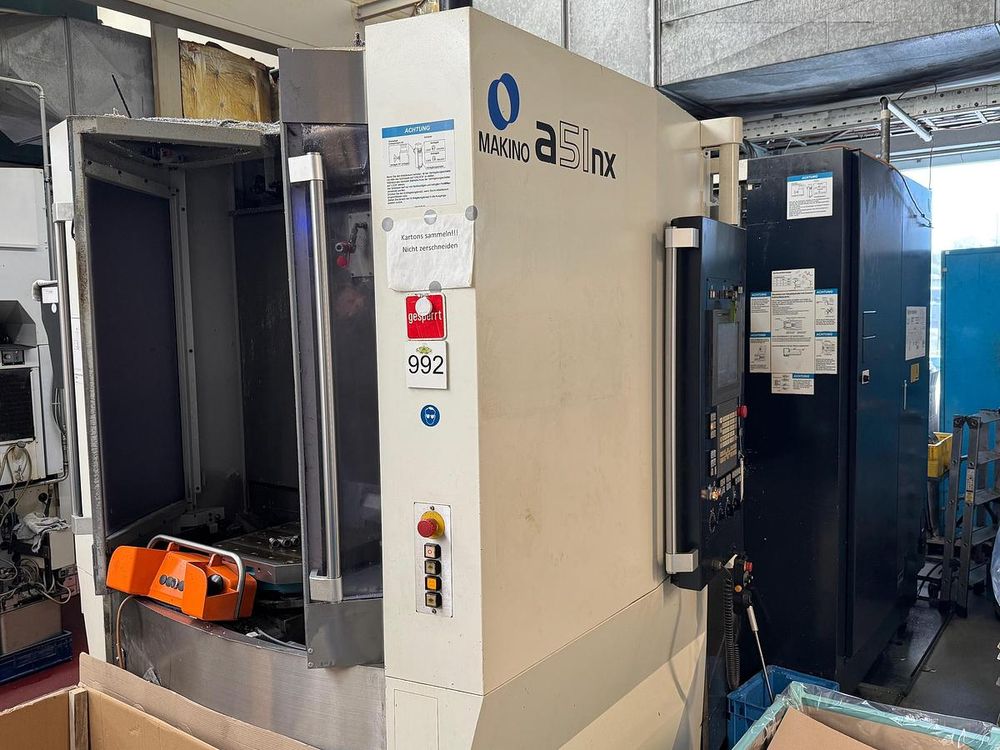

Horizontal Machining Center
MAKINO A51 NX
Year of manufacture 2012
CNC control FANUC Professional 5
Travel (X, Y, Z axes) 560 mm, 640 mm, 640 mm
Pallet size 400 x 400 mm
Spindle rpm 14,000 rpm (14K High Torque, 20K)
Spindle taper HSK63
Rapid traverse 60,000 mm/min
Milling feed rate 50,000 mm/min
Maximum workpiece ø630 mm x 900 mm
Maximum payload 400 kg
ATC capacity 60 tools
Tool-to-tool 0.9 sec
Chip-to-chip 2.2 sec
Maximum tool length (CAT) 430 mm
Maximum tool length HSK 420 mm
Maximum Tool diameter 170 mm
Maximum tool weight 12 kg
Machine dimensions approx.: 3800 x 2500 x 2700 mm
Machine weight approx.: 7800 kg
