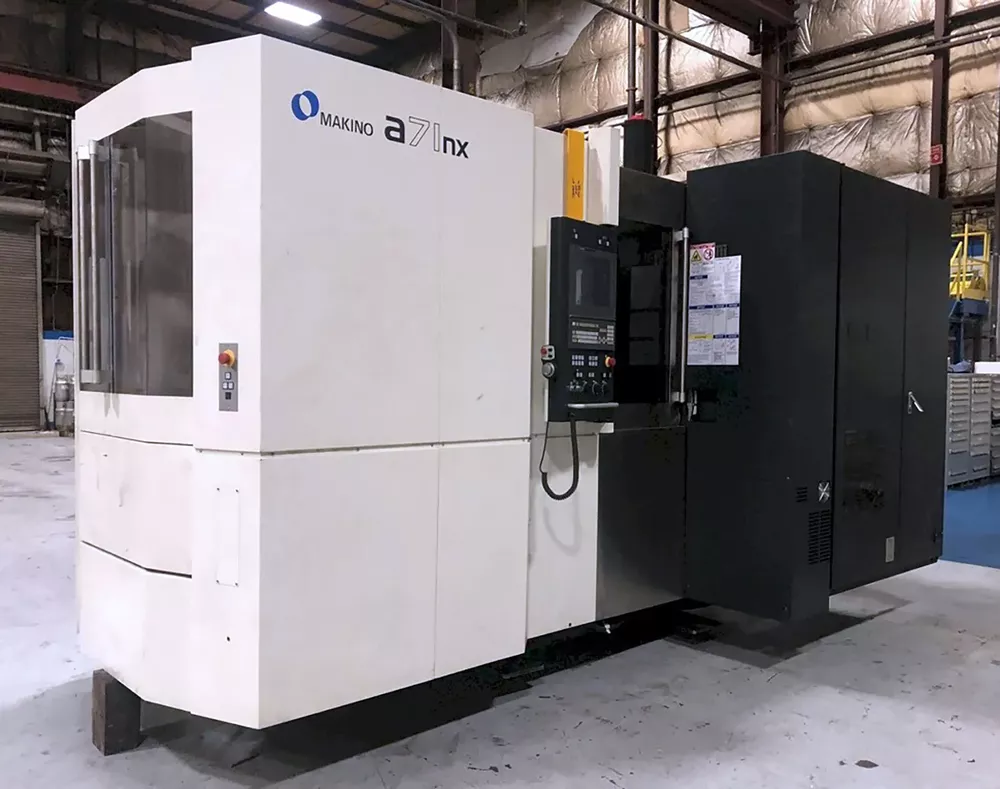

Makino A71NX 4 Axis

MAKINO A71NX
2019

Professional 6 control (Fanuc) with 15" color touchscreen
136-station tool changer
Chip conveyor
Coolant tank and pump
Spindle chiller
Coolant through spindle
USB interface
High-speed skip function
1GB data center
2GB part program storage
Tool life management
Tool load monitoring
GI.5 multi-level high-speed machining
Coordinate system rotation and scaling
Helical interpolation
400 tool offsets
1100 macro variables
X-axis travel 31.5"
Y-axis travel 29.5"
Z-axis travel 32.7"
Rapid traverse X-axis 968 ipm
Rapid traverse Y-axis 1,968 ipm
Rapid traverse Z-axis 2,362 ipm
Spindle taper CAT 50
Spindle speed 10,000 rpm
Pallet length 19.7"
Pallet width 19.7"
Pallet capacity 2,200 lbs
Pallet indexing (B-axis) 0.001°
Spindle motor power 50 hp
Tool changer capacity 136
Machine dimensions 125" x 191" x 122"
Machine weight 32,000 lbs
