MAN Rotoman 5

5-Unit Heatset Web Offset Press
(1) Automatic Reel Loading System

(1) MEGTEC DLC-1600 Reelstand
• Core drive
• Max. reel ø 1270 mm
• Integrated Infeed
• E&L web guides

(1) MAN Roland Web-Up Device

(5) MAN Rotoman Blanket-to-Blanket Printing Units
• Automatic plate change (PPL)
• Elletra Automatic Blanket Washing System
• Direct drive
• MAN Roland Bustle wheel, pneumatic and mech.

(1) Technotrans Ink Supply System
(1) Technotrans delta D200 W Dampening Water Supply
(1) Complete Web Guide and Web Control System
(1) Web Severing Device (between last printing unit and dryer)
(1) Jetweb Aqueous Coater/Remoist Gluer

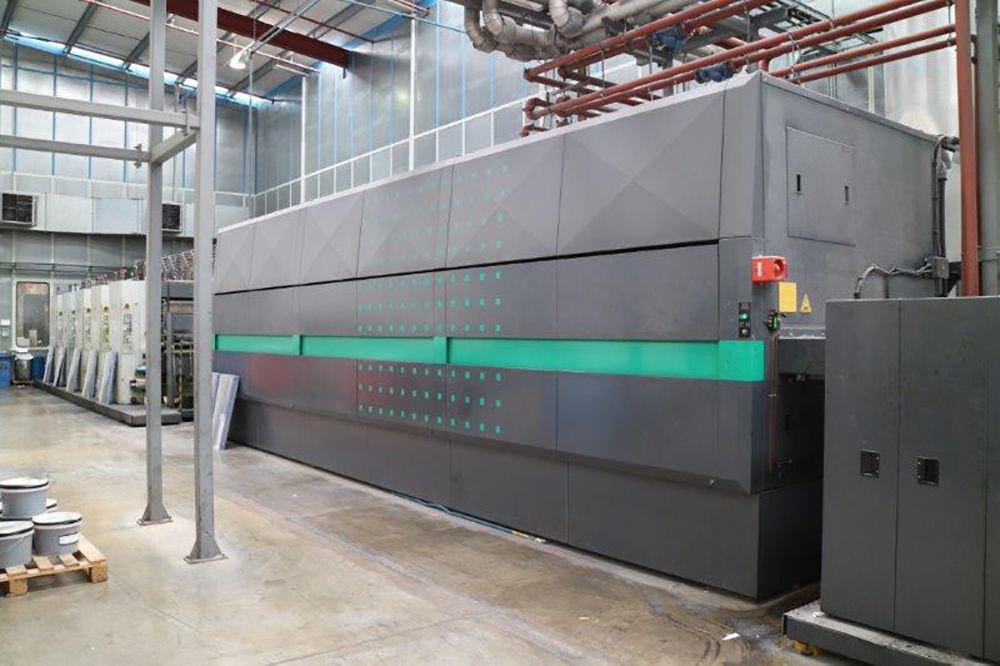

(1) MEGTEC Dual Dry TNV 9.1M Hot Air Dryer
• Integrated afterburner

(1) MAN Roland 5 Roll Chill Stand
• Twin circuit

(1) Scheffer U.V Coater (c. January 2007)
(1) E&L Web Guide
(1) WEKO Silicone Applicator
(1) MAN Folder Superstructure

(1) MAN PFI 1:2:3 Pin Folder (A3, A4, d.p & delta)
• Draw roller with specific gain control and pneumatically adjustable trolley wheels
• Electronic web severing and diverting device to prevent paper jams
• Cross perforation, adjustment on the run
• Longitudinal perforation, adjustment on the run
• Further draw roller with pneumatically adjustable trolley wheels
• Knife cylinder with 1 blade around
• Pin and tucker blade cylinder (4 pieces) with pin and tucker blade systems
• Jaw cylinder, for the formation of the 1st cross fold in the system of 3
• Overfold device for 1st cross fold with lap adjustment on the run
• 1 double parallel and delta fold cylinder
• Tape guide
• Copy slow down before entry into the fold table
• ¼ fold with product delivery against web direction
• Folder Delivery for the delivery of the 1st cross fold with spine leading
• Independent drive for folder.
• Lubrication system, with electric monitoring

(1) Quadtech Multicam RGS Colour Register
(1) Quadtech Multicam 4010 Automatic Cut-Off Register Control
(1) Quadtech SID Closed Loop Colour Control System
(1) Planatol Combi Jet 9PV Gluing System (c. 2014)
(1) VITS Rotocut S Single Cut Sheeter
(1) MAN PECOM Basic Press Control and Process Electronics
(1) Connection to the existing PECOM Production Manager
(1) MAN Automatic Plate Bender
(1) Arcade Central Chilling Station
(1) 4 Sided Noise Enclosure
Post Press
(1) Folder Exit Conveyors
(1) Lonveyor Combined Bump/Flow Turn
(1) Gammerler RS 3-Sided Rotary Trimming System
(1) Gammerler SV 500 Log Stacker/Palletizer
