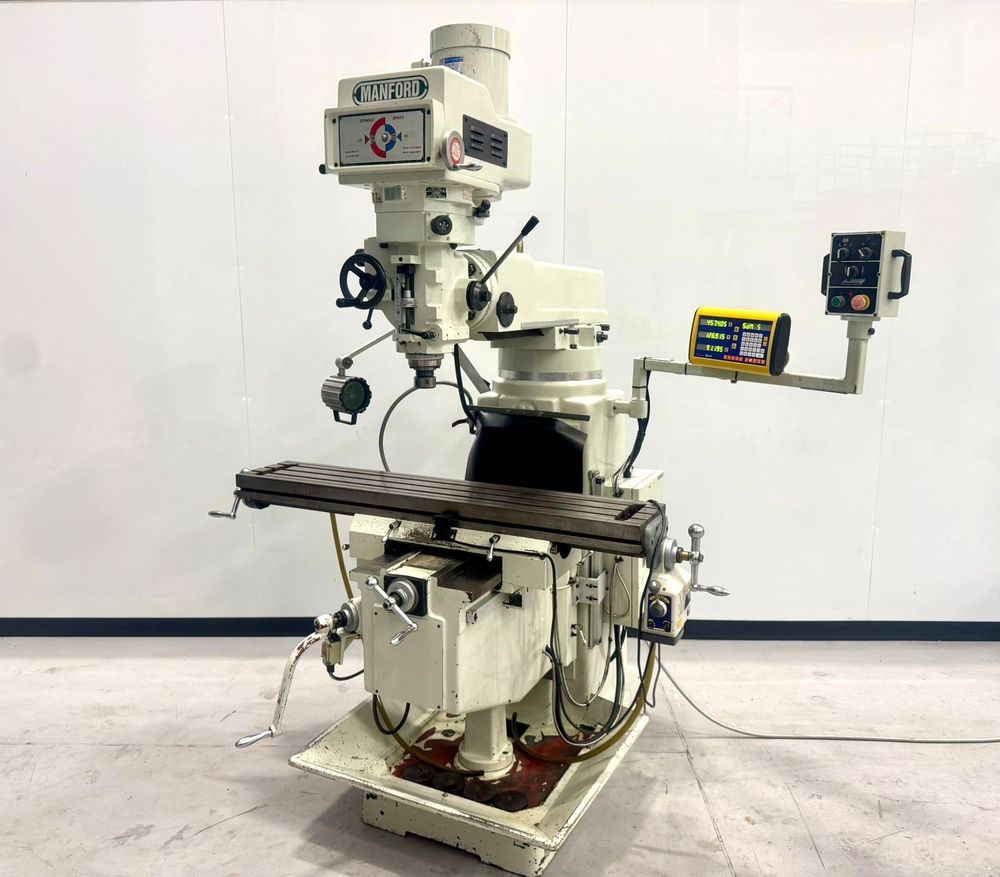

Manford SP520VS Vertical Variable Speed

Table size: 1370 x 250 mm
T slot number and size: 3 x 0.629 mm
Longitudinal travel: 870 mm
Cross travel: 410 mm
Travel of knee: 450 mm
Ram travel: 560 mm
Quill travel: 127 mm
Min/Max spindle nose to table: 85–535 mm
Swivel of turret: 360°
Head swivel (right to left): ±45°
Min/Max spindle to column: 178–738 mm
Spindle motor: 5 HP
Spindle taper: ISO 40
Quill feeds: 0.004 mm, 0.08 mm, 0.14 mm/rev
Spindle speeds: 40–3600 rpm infinitely variable
Infinitely variable longitudinal powered feed
3-axis digital readout
Pendant control
Machine dimensions (L x W x H): 1840 x 2120 x 2375 mm
Weight: 1600 kg
