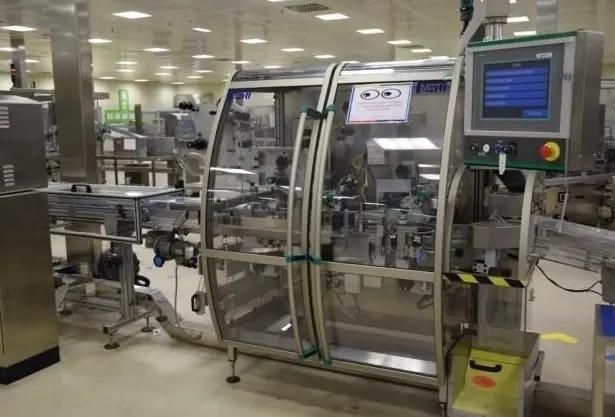

MARCHESINI, Neri BL400, LABELLING MACHINE

MACHINE FEATURES
labelling machine balcony construction in stainless steel
electrical cabinet on machine board
easy access to electrical and mechanical parts from behind
positive transport of cartons with toothed belts
tamper evident seals application (VTE and TE)
automatic label changing system with set-up by keyboard and possibility to memorize different label sizes
self-diagnosis on 6” colour touch display on swiveling arm

PRODUCTION CHARACTERISTICS
Maximum rate: 400 pcs/min
Label speed: 0 ÷ 50 m/min
Maximum reel diameter: 400 mm

Minimum load control at the inlet/Maximum load control at the outlet
Carton width (A): 20 ÷ 180 mm
Carton height (B): 15 ÷ 120 mm
Carton length (C): 70 ÷ 200 mm
Vignette height: 20 ÷ 60 mm
Vignette length: 15 ÷ 80 mm

ENERGY
Standard electric power supply: 380 - 220 V-50 Hz
Installed power: 2 kW
Compressed air consumption: 20 Nl/min
Compressed air pressure: 6 bar
