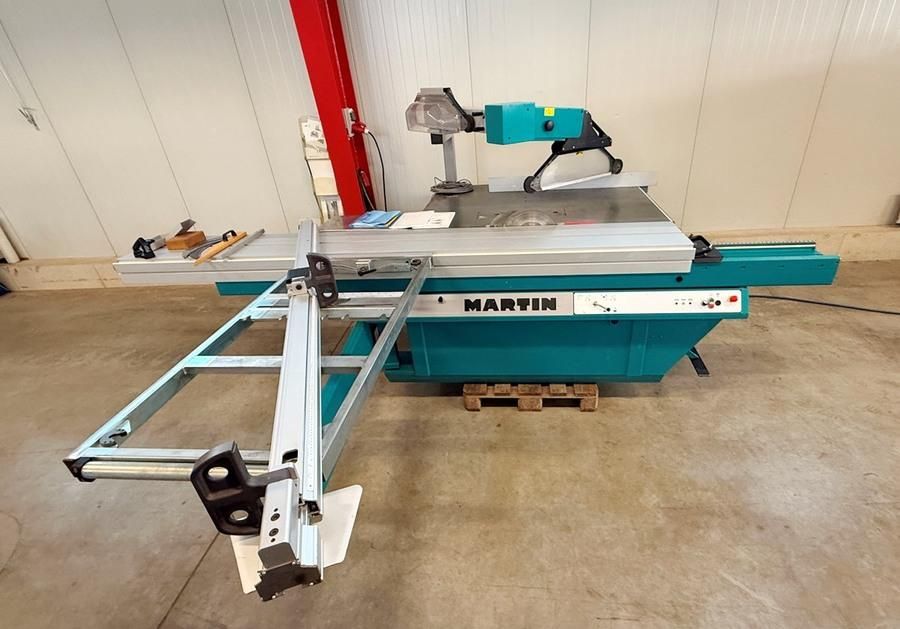

Martin T 73 BASIC

Sliding table saw
Sliding table 3000 mm
Maximum cutting height 170 mm
Maximum saw blade diameter 500 mm
Saw blade bore 30 mm
Cutting width 1100 mm
Motor 7.5 kW
Speeds 2800 / 4000 / 5500 rpm
Hydraulic saw blade tilt 0° - 46°
Hydraulic cutting height adjustment
Circular saw ruler can be lowered
Pneumatic saw shaft lock
Cross table with fixed angle adjustment
Length stop extendable up to 3300 mm
Sliding table with stepless locking
Integrated contact for controlling the dust extraction system
Central lubrication point
Transport dimensions approx. 3300 x 2000 x 1800 mm LWH
Weight approx. 1500 kg
