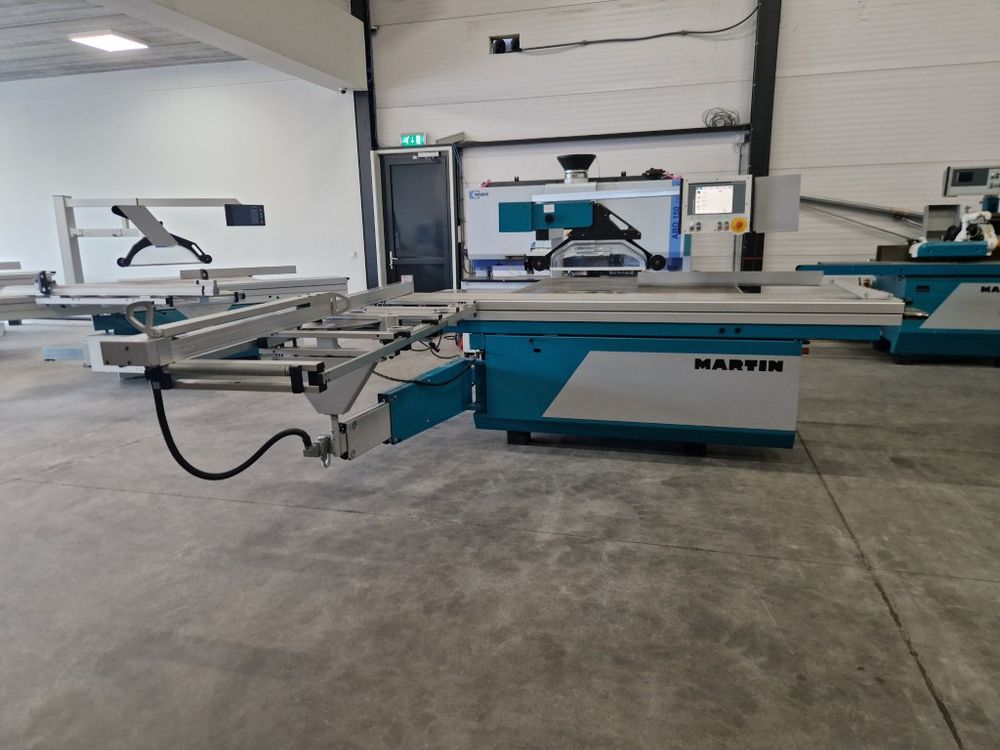

Martin T74 AUT

Radio Control – sliding table saw, with 4-ax CNC control; parallelogramtable as 5. ax integrated in central control
Table Size: 1.350 x 1.500 mm in grey cast iron; table extension 600*400 with storage
Table Heigt: 900mm
Sliding Table: 3.300mm
Main saw: 5.5 kW
Saw Blade Arbor: Main saw blade arbor: 30 mm Ø; two 10 mm drive pins
Saw Blade replace: “ProLock” quick change system
Saw Blades: Ø 250 – 500 mm; saw blades up to Ø 400 mm can be lowered below table; saw blades up to Ø 400 mm can be used with scoring blades
Cutting Heigt: CNC-controlled max. 170 mm when Ø500 mm
Blade tilting: CNC-controlled 0 – 46°
Cutting Width: CNC-controlled, max. 1.350 mm
Scoring Blades: 3-ax controlled scoring saw
Rip fence: CNC controlled fence jaw in anodised aluminium; can be lowered under table level autmatically in its final position;
Parallelogram table: Swivelling table with Radio Control connection with Cross Cut Fence (5. ax integrated)
Cross cut fence: CNC-controlled – anodised aluminium with 2-stops, Radio Control (automatic) length corection when table is swivelled
Control panel: Control panel at eye level
Touchscreen: 10.4″ touchsreen full color
