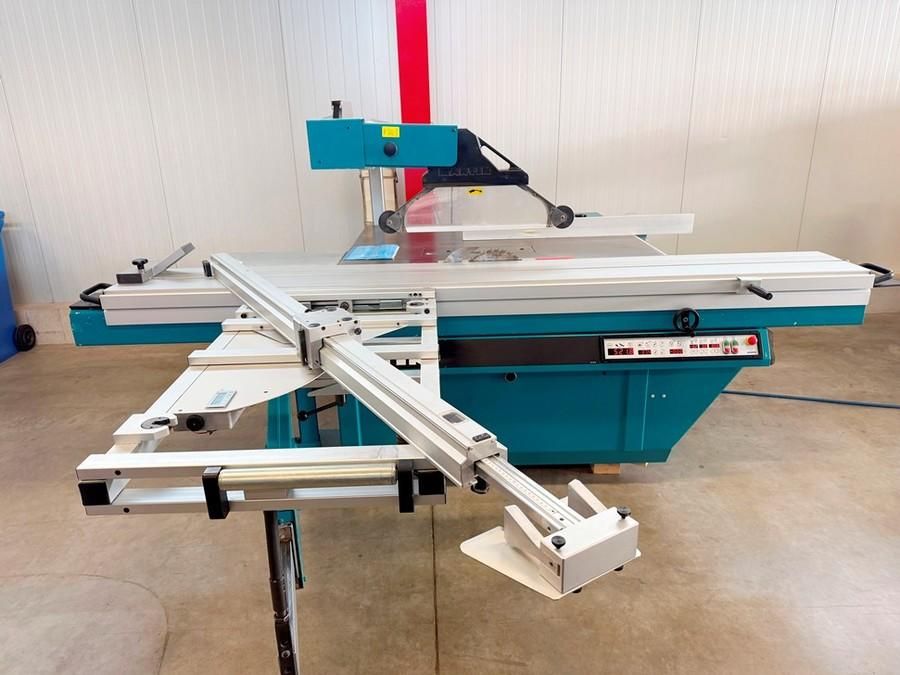

Martin T 73 CLASSIC

Sliding table saw
Sliding table length 3000 mm
Maximum cutting height 170 mm
Saw blade diameter 250 - 500 mm
Cutting width 1100 mm
Motor 5.5 kW
Speeds 2800 / 4000 / 5500 rpm
3-axis scoring unit, pneumatically controlled scoring position and scoring width
Motorized saw blade tilt 0° - 46° with digital display
Motorized cutting height adjustment with digital display
Cutting width adjustment via hand wheel, pneumatically supported, with digital display
Parallel stop can be lowered
Control panel in the machine stand
Parallelogram protective cover can be swiveled away
Parallelogram cross table 1300 x 700 mm
Length stop with analog stop element extendable up to 3200 mm
Central lubrication point

Including electrical circuit diagrams
LCD display in parallelogram cross table currently defective
Transport dimensions approx. 3200 x 2000 x 1500 mm LWH
Weight approx. 1700 kg
