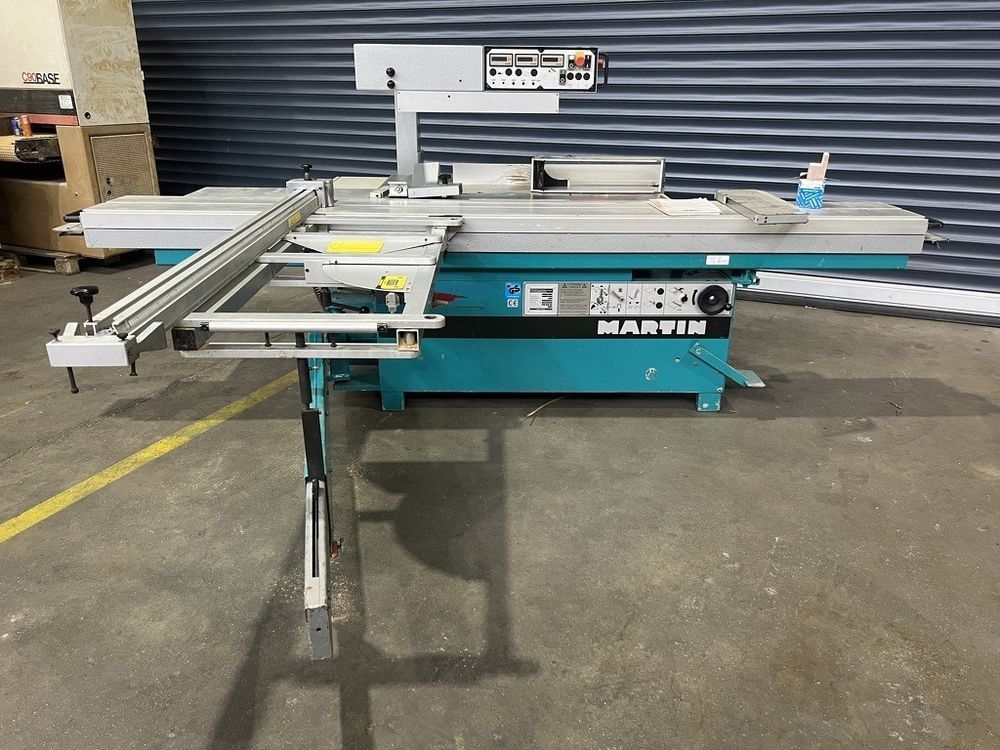

Martin T72A

Sliding table saw
Control panel: Eye-level integrated in dust extraction cover, LCD displays showing saw height, -saw tilting angle, width/parallel fence positioning; scoring saw positioning
Saw blade elevation: Hydraulic footpedal elevation 0 – 170 mm – with LCD display
Saw blade tilting: Hydraulic footpedal tilting 0 – 46° – with LCD display
Parallel fence Positioning: Handwheel positioning (frontsidemachine) – digital reading on central control
Dust cover top: Electrically controlled elevation
Manual sideward positioning for large objects sawing
Cross-cut table: Aluminium swivelling table suitable for mitre cuts by scale without adjusting the cross-cuit fence -46° to +46° cuts
Length compensation list for various angles
Cross-cut fence: Aluminium: 2.200 mm, extendable upto 3.300 mm, with 2-point stops
Mainsaw: ø450 mm, bookthickness; 0-170 mm, tilting 0° – 46°
2.000/2.750/4.000/5.000 rpm
Motor: 5,5 KW
Scorer: ø120 mm, 9.400 electric controlled positioning
Motor: 0,75 KW
Sliding table: 3.300 mm
Width: 850 mm
Dustextraction: Top: ø100 mm, bottom: ø120 mm
Weight: 1.600 KG
