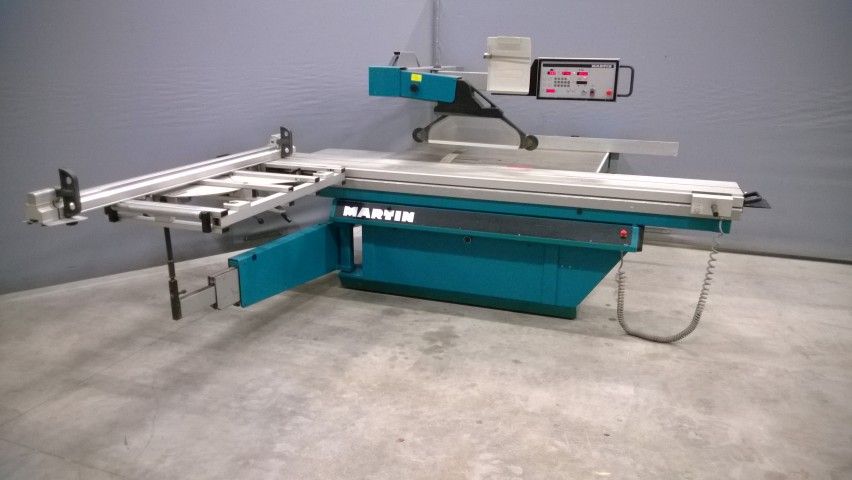

Martin T73 AUT

Table dimensions: 1,350 x 1,500 mm
Table height: 900 mm
Trimming table: 3,300 mm
Main saw: kW
Saw blade shaft: ø 30 mm with two drive pins
Saw blade change: Quick-change system “ProLock”
Saw blades: Ø 250 – 500 mm; up to Ø 400 mm can be recessed under the table

Cutting height: 170 mm (Saw blades: 500 mm)
Saw blade tilt: 0 – 46°
Cutting width: 1,350 mm
Parallel fence: Anodized aluminum fence; end position Automatically lowers below table level

Length stop: Digital length stop made of anodized aluminum with Martin 2-point stops
Control: NC control with LCD display of width, height, and bevel angles, plus 2 digital length stops
Screen: LCD control panel at eye level, swivels away with a display panel
Support table: Parallelogram miter table with digital display and extendable roller support
