Marvel PEGA 357 33 TON

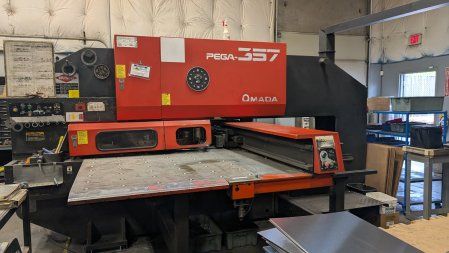

AMADA, PEGA 357
33 TON FANUC 04PC, 58sta., 2 A/I
MFG: 1996

SHEET SIZE............................................ 50" X 72"
THICKEST MATERIAL..................................... 1/4" M.S.
MAX. HOLE DIAMETER.................................... 4-1/2"
NO. OF STATIONS....................................... 58 (W/2 AUTO INDEX)
STROKES PER MINUTE.................................... 350
AXIS SPEED............................................ 2,000 IPM
TURRET ROTATION....................................... 30 RPM
HITS PER MINUTE 1" MOVES.............................. 220
NIBBLING HITS PER MINUTE.............................. 350
STANDARD CONTROL...................................... FANUC 04 PC
TAPE FORMAT........................................... E.I.A. OR A.S.C.I.I.
PROGRAMING MODE....................................... ABSOLUTE/INCREMENTAL
SMALLEST PROGRAMMABLE................................. .001"
AXIS & TURRET DRIVE................................ AC MOTORS BRUSHLESS/SERVO
MAIN MOTOR............................................ 5 HP
MACHINE WEIGHT........................................ 30,000 LBS.
EQUIPPED WITH:
HYDRAULIC CLUTCH AND BRAKE SYSTEM
58 STATION TURRET, 2 AUTO INDEX
FANUC 04PC CONTROL WITH CRT SCREEN AND KEYBOARD UNIT
AUTO REPOSITIONING (50" X 144")

APPROXIMATE DIMENSIONS ........................181" L X 148" W X 88" H
