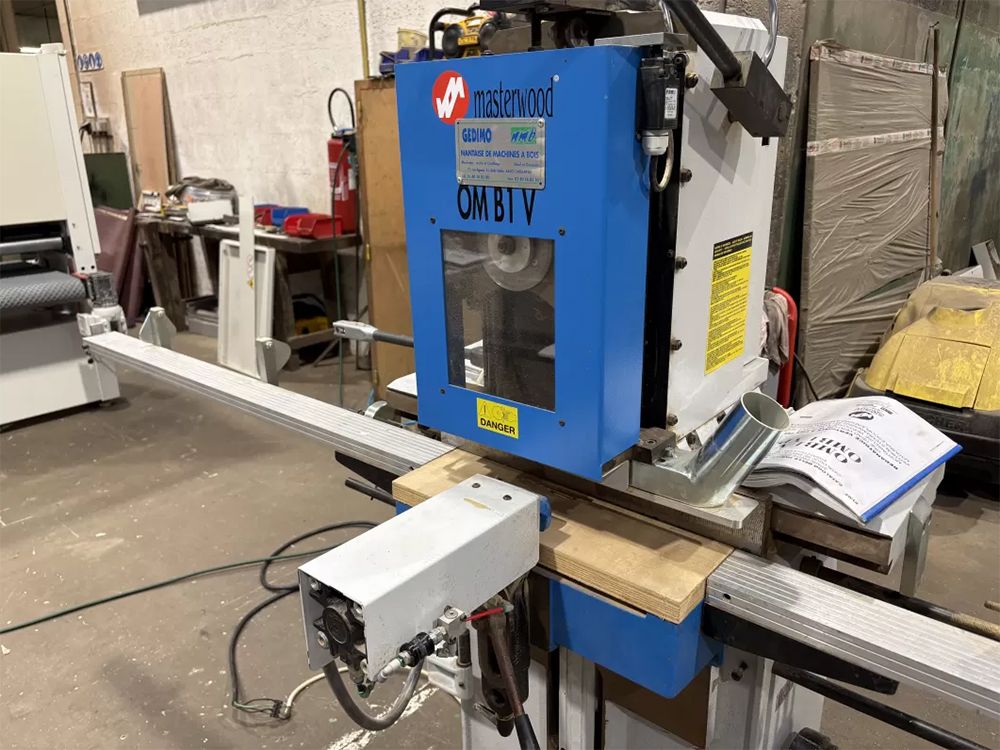

Masterwood OMB1 VERTICAL BEDANE MORTISING MACHINE

MACHINING CAPABILITIES:
- Clearance of wood between horizontal presser and support: 115 mm
- Longitudinal (horizontal) stroke of the head: 265 mm
- Lateral travel ( forward-rear adjustment): 80 mm
- Vertical stroke: 130 mm
Table rotation/tilt: +/- 45°
- Maximum height of the assembled frame (door): 1000 mm

Movements:
- Manual vertical carriage of the head
- Manual horizontal carriage
- Pneumatic press
- Manual transverse adjustment of the head via handwheel
- Manually adjustable table tilt

MACHINE COMPONENTS:
- Cast iron frame
- 2 rulers: 1500mm long with 2 stops
- Support table made of sacrificial plate (WxD): 470x145 mm
- Pneumatic vise press
- Splinter guard
- Pneumatic blow gun
- Support for assembled chassis
(Low support for door or window frame)
- Calculator supplied with program for calculating the oscillation of the mortise chisel

OTHER TECHNICAL SPECIFICATIONS:
- Motor: 400v, 5.2A, 50Hz
- Power: 3 hp
- 6 bar pneumatic supply
- Suction port Ø60 mm
- CE marking
- Lockable disconnect switch, emergency stop

- Overall dimensions in operating order (LxWxH): 3000x900x1800
Overall dimensions for transport (LxWxH): 1500x900x1800
- Weight: 440 kg
