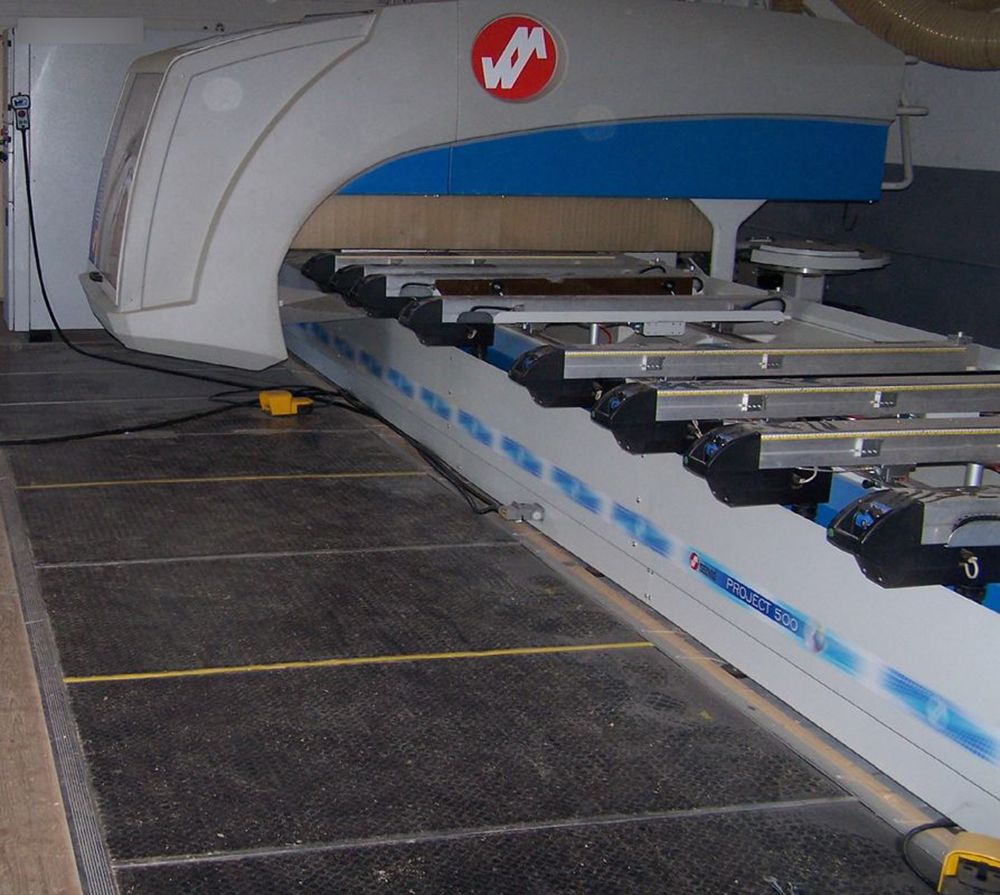

Masterwood Project 500 XL Long Table 4-axis

This CNC machining center is designed for working with wood and wood-based materials.
Versatile and high-performance, it allows for complex drilling, milling, grooving, and machining operations on panels.
This model is particularly well-suited for joinery workshops, furniture manufacturers, and producers of custom doors and other elements.

Machine with a heavy-duty 4500kg frame and open gooseneck
Footprint 9000x4800mm, height 3200mm
4-axis CNC machine

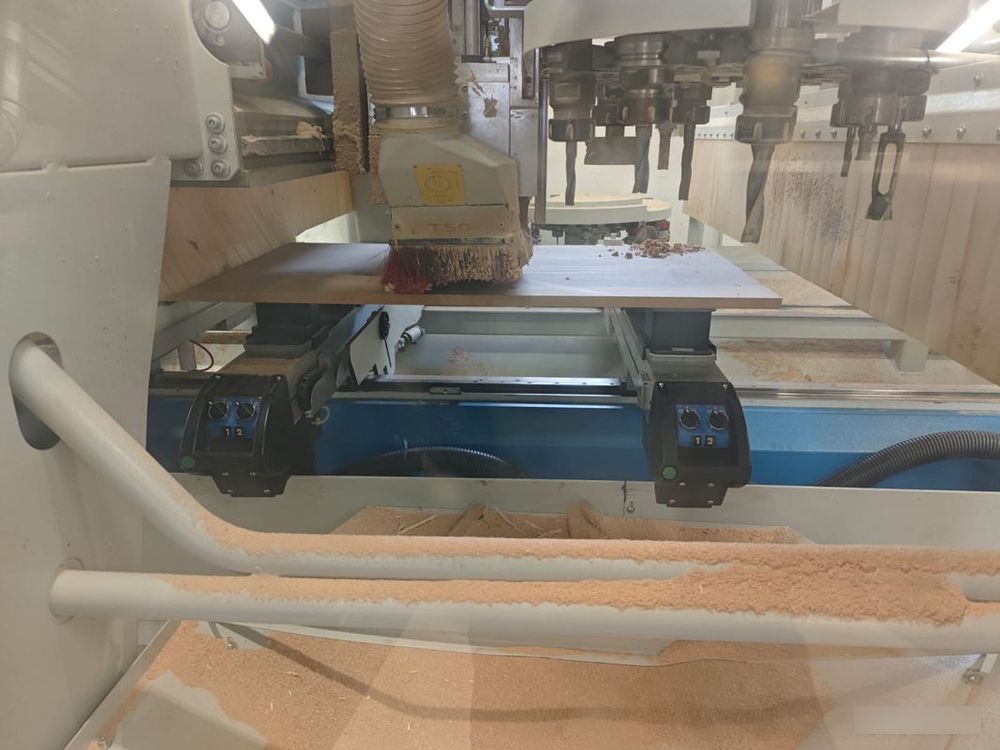

8-beam table with double vacuum zone and 4 lifting blades for workpiece loading and unloading
Maximum machining capacity 5190x1390x110mm
Maximum workpiece height 110mm

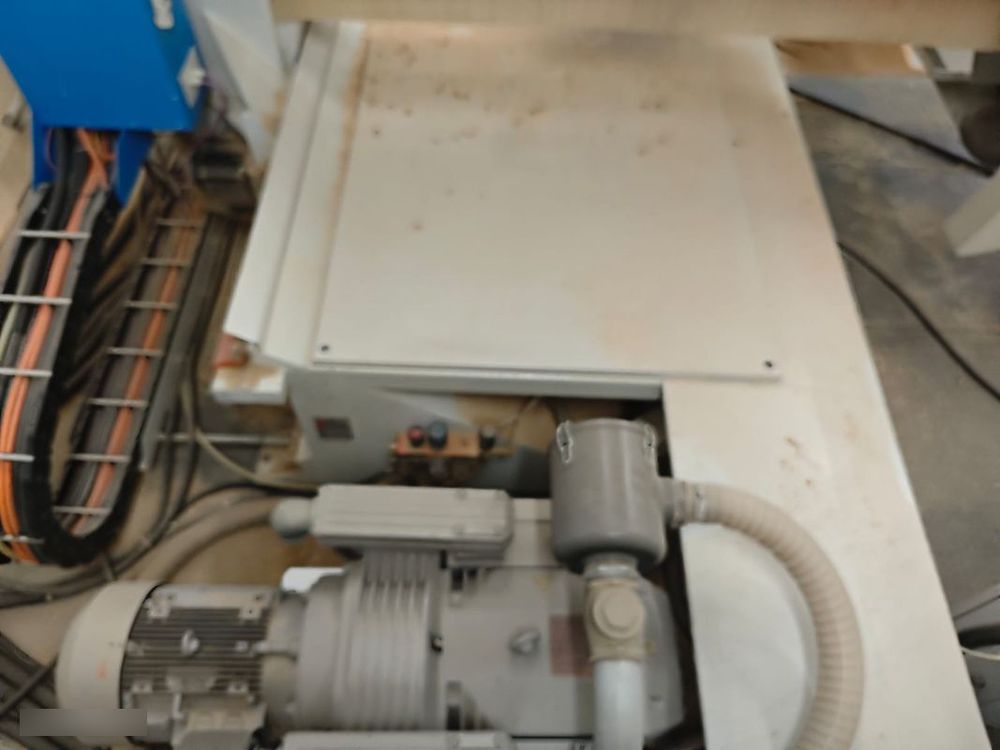

1 x 100m³ vacuum pump

CNC components
12kW vertical spindle chuck with HSK63F attachment (main spindle)
with 2 rotary magazines totaling 28 positions, including 1 x 10-position quick-change magazine
Horizontal spindle chuck on the Y-axis with a fixed ER25 collet and 3kW motor (for horizontal machining of mortises, chests, etc.)

17-spindle drilling head with 5 vertical spindles on the X-axis EA32mm
11 Vertical chucks on Y-axis EA32mm
2 Horizontal double chucks EA32 on X-axis
2 Horizontal single chucks on Y-axis
1 Fixed groove unit on X-axis with Ø125mm blade
36 suction cups, 100mm high, including
16 suction cups measuring 114x140mm
2 adjustable suction cups
Other suction cups with rectangular profile, oriented in both X and Y directions
Design and manufacturing software
Interactive MASTERWORK CAD/CAM design and drawing software
with possible import of DXF files.

Maintenance and recent parts
2 x 24V power supplies replaced in 2025
All conveyor belts replaced in 2024
36 suction cups in total, including about ten less than a year old

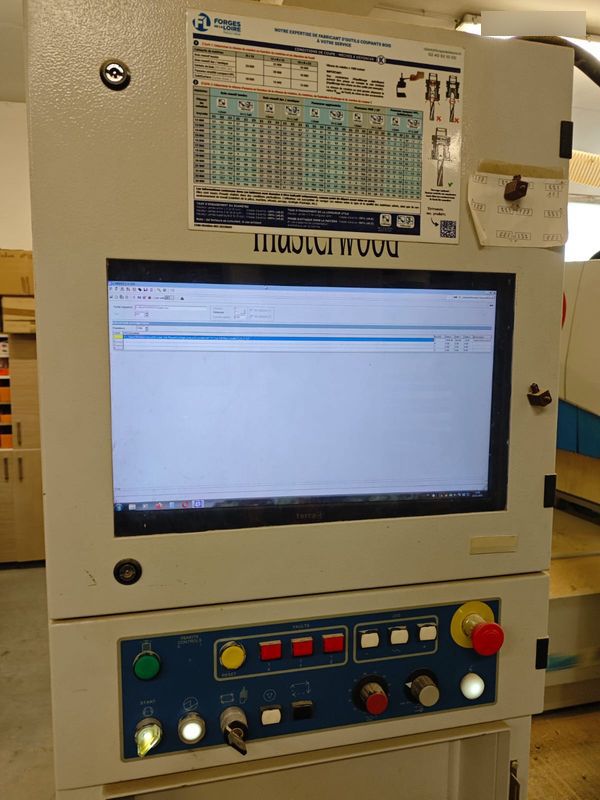

Computer and monitor replaced in 2020
Horizontal electro-spindle replaced in 2019
