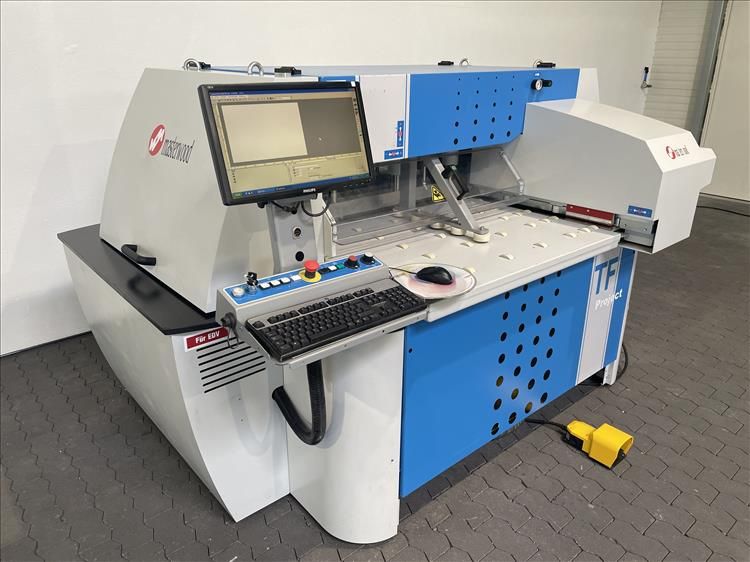

Masterwood Project TF

Ref : 2723905-15-MT
Condition : Used
Manufacturer : Masterwood
Model : Project TF
Nb Of Axis : -
Year(s) : -
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Machining Center - Used
Through-feed machining,
Air table in the work area,
Hardened, dust-protected prism guides,
Ball screws on all axes,
Network card for remote maintenance,
Integrated control cabinet,
Saw unit for grooving in the X direction,
Manual central lubrication

Technical specifications :
Min. workpiece length X: 250 mm,
Min. workpiece length Y: 100 mm,
Min. workpiece thickness: 10 mm,
Max. workpiece length X: infinite,
Max. workpiece length Y: 1,000 mm,
Max. workpiece thickness: 60 mm,
Operating system: Windows,
Machine control software: Masterwork,
Number of vertical drilling spindles: 10,
Number of horizontal double drilling spindles in the X direction: 2,
Number of horizontal Double drill bit in Y-direction: 1 piece,
Saw blade diameter of saw unit: 125 mm,
Extraction connection diameter: 150 mm,
Required air flow: 2,000 m³/h,
Required air velocity: 20/30 m/s,
Compressed air consumption: 1,000 l/min.,
Dimensions (LxWxH): 2,200 x 2,480 x 1,584 mm,
Weight: 1,500 kg
