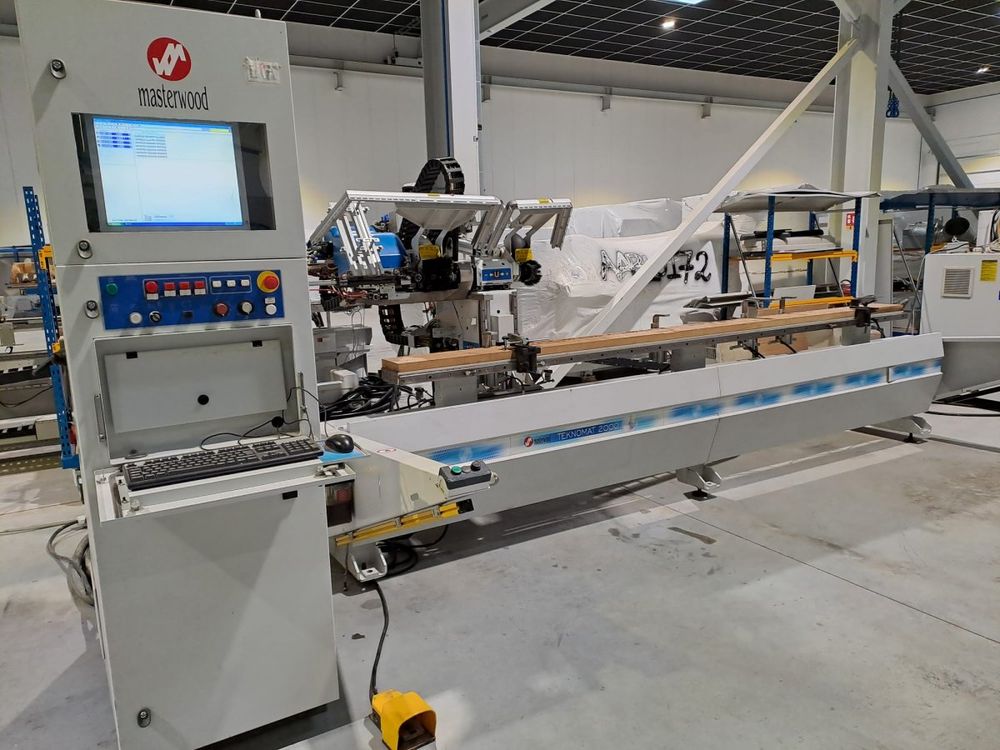

Masterwood Teknomat 2000TF

Notching Machine
Condition: Used

Components:
- 400V 50Hz Euro Power Supply
- Anuba Head with Speed ​​Control
- Teflon Chuck and Charger
- 16mm Anuba Socket
- 3.3 kW Electric Spindle
- 3.3 kW Pneumatic Electric Spindle, Tiltable 0°-90°
- CE Safety Standards
- Two Front Panel Supports
- Additional Rear Vertical Clamp
- CNC on External PC
- PC and Instructions in French

Technical Specifications:
Machining Capacity:
X: 3000mm
Y: 150mm
Z: 350 mm

Groups 1-2 on digital tilting support -7° to 90°
Group 3 on pneumatic tilting support 0-90°
1st group: ANUBA hinge pin, 16 mm diameter (diameter to be confirmed), digital tilting -7° to 90°
2nd group: high-frequency electro-spindle milling, 18,000 rpm, 3.3 kW, digital tilting -7° to 90°
3rd group: high-frequency electro-spindle milling, 18,000 rpm, 3.3 kW, pneumatic tilting 0-90°

- Table dimensions: 3000 mm usable area
- Control via separate cabinet
- Masterwood MW313 software
- Included program: for ANUBA hinges (3 models)
- Program for mounting two closely spaced ANUBA hinges
- Program for performing a single Drilling
- Louver program
- Milling program for lock housing and for hangers

- Speeds:
70 m/min on U-axis
40 m/min on V-axis
15 m/min on W-axis

- Double 16mm Anuba spindle included (diameter to be confirmed)
- Two front panel supports
- Digital up/down and tilt control
- Digital counter on the control panel
- Special features: safety barrier, infrared beam on the front
- Dust extraction diameter: 2 x 100 mm
- Amps: 25.5 A
- Machine dimensions: 5900 mm x 3300 mm, cabinet 1200 mm x 600 mm
