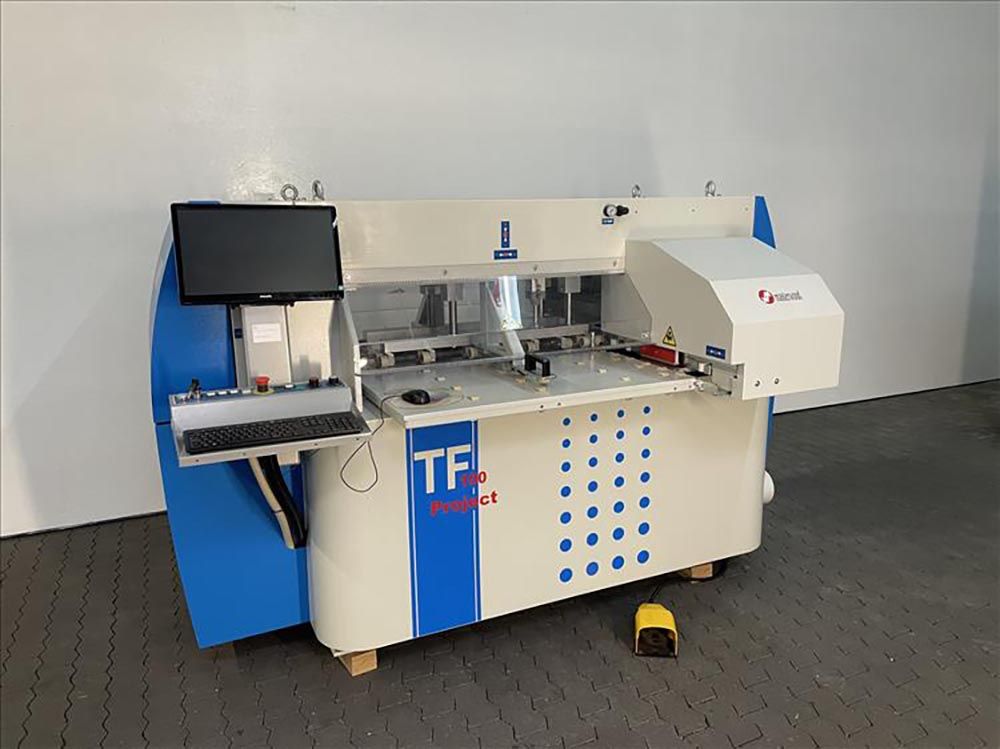

Masterwood TF100

Machining center used
Through-feed machining,
Air table in the work area,
Ball screws on all axes,
Network card for remote maintenance,
Integrated control cabinet,
Saw unit for grooving in the X direction,
Manual central lubrication,
Sensor for panel measurement,
Windows 10 PC,
New drill bit set,
New DIA milling cutter

Technical specifications :
Min. workpiece length X: 250 mm,
Min. workpiece length Y: 80 mm,
Min. workpiece thickness: 10 mm,
Max. workpiece length X: unlimited mm,
Max. workpiece length Y: 1000 mm,
Max. workpiece thickness: 60 mm,
Operating system: Windows 10,
Planning software: Masterworks,
Main spindle speed: 1,000 - 18,000 rpm,
Number of drill spindles: 10,
Number of Number of horizontal double drill bits in X-direction: 2,
Number of horizontal double drill bits in Y-direction: 1,
Saw blade diameter of saw unit: 125 mm,
Extraction connection diameter: 150 mm,
Compressed air connection: 8 bar,
Dimensions (LxWxH): 1,990 x 2,410 x 1,510 mm,
Weight: 1,300 kg
