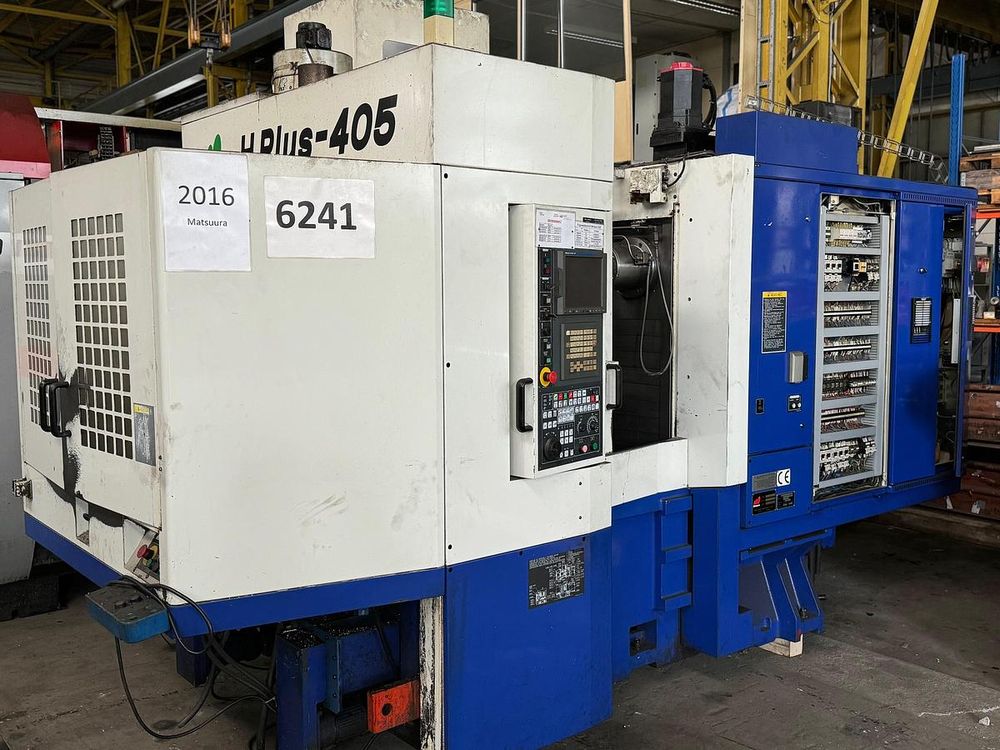

Matsuura H-Plus 405 PC2 4 Axis
Ref :
2756598-3-GO
Condition :
Used
Manufacturer :
Matsuura
Model :
H-Plus 405 PC2
Nb Of Axis :
4 Axis
Year(s) :
2002
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-Axis Travel: 660 mm
Y-Axis Travel: 660 mm
Z-Axis Travel: 660 mm
Rapid Traverse X-Axis: 50,000 mm/min
Rapid Traverse Y-Axis: 50,000 mm/min
Rapid Traverse Z-Axis: 50,000 mm/min
B-Axis (Rotary Table): 0.001°
CNC Control: FANUC 16i
Spindle Speed: 12,000 RPM
Spindle Power: 22 kW
Spindle Torque: 187 Nm
Tool Holder: BT40
Pallet Size: 500 x 500 mm
Max Table Load: 400 kg
Max Workpiece Size: Ø700 x 850 mm
Overall Height: 2,530 mm
Overall Length: 6,740 mm
Overall Width: 3,340 mm
