Mazak CNC CONTROL 5,000 rpm INTEGREX 200‑4 ST 4 Axis

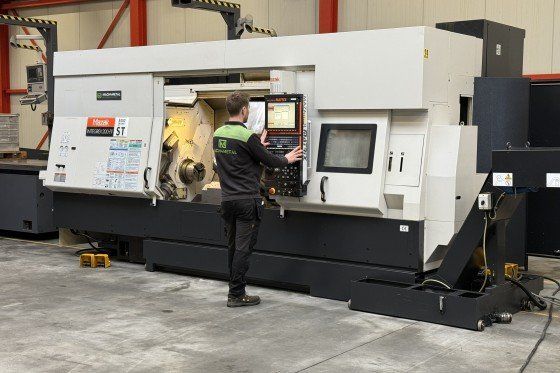

MAZAK INTEGREX 200‑4 ST
2007

Max turning diameter: 660 mm
X‑axis travel: 580 mm
Y‑axis travel: 160 mm
Z‑axis travel: 1545 mm
B‑axis swivel: 270°

Spindle bore: 65 mm
Spindle speed max: 5,000 rpm
Spindle power: 22 kW

Sub‑spindle speed max: 5,000 rpm
Sub‑spindle bore: 65 mm
Sub‑spindle power: 18.5 kW

Tool turret capacity: 40
B‑axis tool system: Capto C6
B‑axis speed max: 12,000 rpm

Machine length: 5,200 mm (approx.)
Machine width: 2,550 mm (approx.)
Machine height: 2,600 mm (approx.)
Machine weight: 14,000 kg

Multi‑tasking machining in single‑setup
Sub‑spindle with full C‑axis
Tilt‑able high‑speed milling spindle up to 240°
Lower turret with live tooling
Chip conveyor with coolant and 15 bar IKZ
Double chuck KNCS‑N 210‑53 (SMW Autoblock)
MAZAK Flex‑GL150F gantry loader
Gantry loader grip range: 200 × 120 mm, 15 kg capacity
