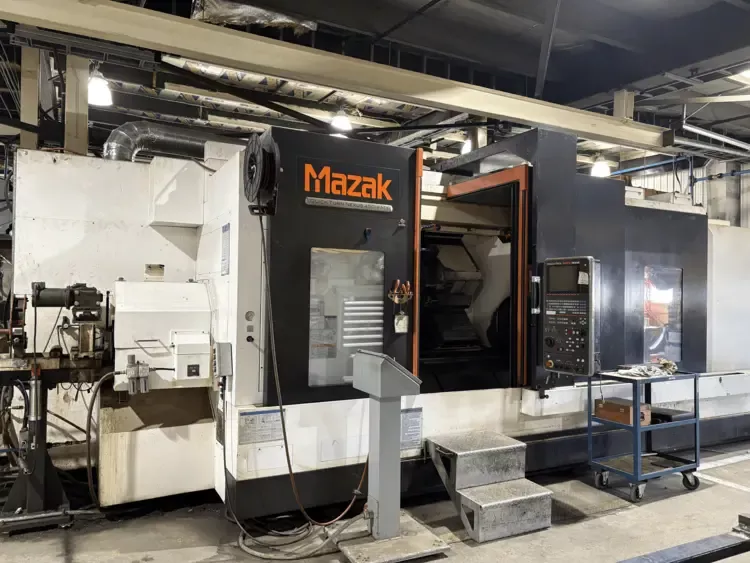

Mazak CNC (MAZATROL MATRIX NEXUS) 2,000 RPM QTN 450-II MY 4 Axis

MAZAK QTN 450-II MY
2010

maximum swing 29.5"
max turning diameter 22.8"
main spindle bore 7.28"
max bar capacity 7.28"
tail stock yes
maximum swing over cross slide 22.8"
maximum cutting length 121.5"
x-axis travel 13.375"
z-axis travel 121.5"
y-axis travel +/- 5.91"
c-axis indexing 0.001 degree

main spindle chuck size 20"
main spindle chuck type air
main spindle speed 2,000 RPM
main spindle horsepower 50 hp

rear chuck prep yes
rear chuck yes
rear chuck diameter 20"
rear chuck type air
turret tool positions 12
turret rotary tool spindle speed 4,000 RPM
turret rotary tool horsepower 10 hp
steady rest yes
chip conveyor yes
chip conveyor side exit
milling spindle synchronous tapping yes
tool eye automatic front spindle yes
tool eye measurement lower turret yes
coolant thru milling head yes
high pressure coolant system 213 psi
work measuring system (probe) yes
y-axis upper turret

rapid traverse x-axis 1181 ipm
rapid traverse y-axis 591 ipm
rapid traverse z-axis 1181 ipm

additional tooling standard tooling package
control CNC (MAZATROL MATRIX NEXUS)
dimensions 243.54" x 109.9" x 103.35"
weight 47,888 lbs
mazatrol matrix nexus control
ats/sys dual bt-7.3 es air chuck 7.3" thru hole (front and rear mount chuck)
jaw jogging system for front mount chuck
preparation 1000 psi superflow
mazak super flow v8 variable high pressure coolant
electrical
120" re-threading
auto front door open/close for 120" bed length
smw steady rest prep single/auto with flush coolant
smw steady rest
auto base controlled by lower
chip conveyor side exit 3000U (hinge)
coolant pan
standard tool package
