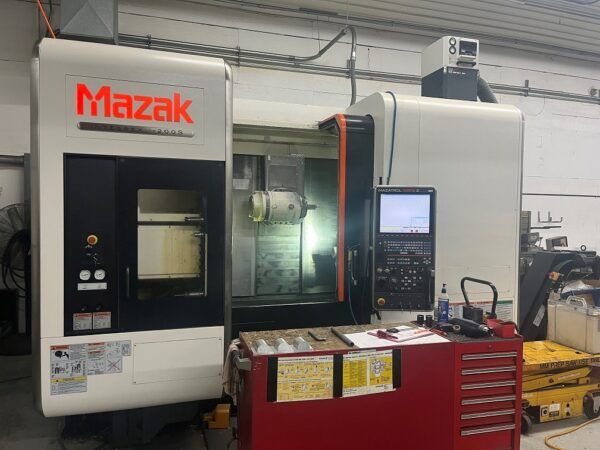

Mazak Control Mazatrol Matrix 2 5,000 RPM INTEGREX I-200S 6 Axis

X-axis travel 24.21 in
Y-axis travel 10.24 in
Z-axis travel 42.4 in
W-axis travel 41.97 in
B-axis travel -30° to +240°
C-axis positioning 0.0001 deg

5-axis simultaneous capability
High speed machining software package
High smoothing control
EIA/ISO function

Main spindle speed up to 5,000 RPM
Main spindle power 30 HP
Main spindle chuck 8 in
Spindle taper Capto C6

Sub spindle speed up to 5,000 RPM
Sub spindle power 30 HP
Sub spindle chuck 8 in

Milling spindle speed up to 12,000 RPM
Milling spindle power 30 HP

Tool stations 72
Max tool length 15.75 in
Max swing 25.91 in
Max machining length 40 in
Max bar capacity 2.6 in

Thru coolant / flood coolant system (213 PSI)
RMP60 probe system
Hobbing function (without tooling)
Chip conveyor (side discharge, hinge type)
