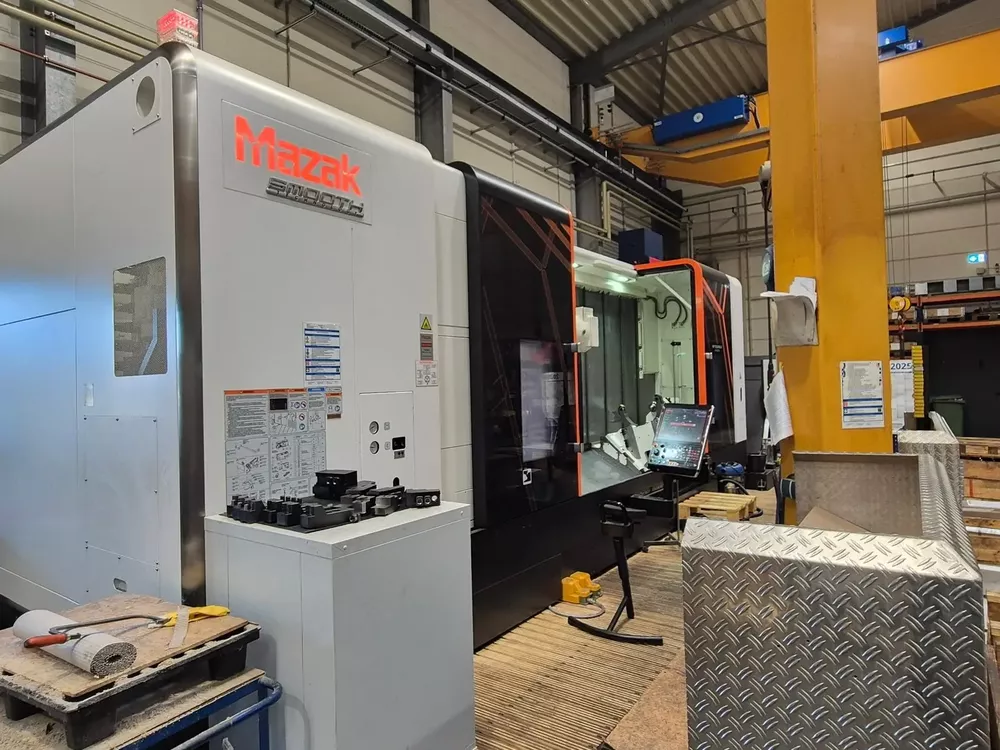

Mazak Control Smooth X 10,000 rpm INTEGREX e-500 H x 3000 4 Axis

X-axis travel 820 mm
Y-axis travel 500 mm
Z-axis travel 3,122 mm
B-axis -30° to 210°
B-axis 0.0001°

Control Smooth X
Cooling through the spindle 70 bar
Cooling with air through rotating milling spindle
Mazak Monitoring B
Renishaw RMP 600
Tailstock travel 2,990 mm

Max. rotary diameter 820 mm
Max. turning length 3,000 mm

Main spindle drive power 30 kW
Main spindle speed 3,300 rpm
Main spindle torque 3,100 Nm
Spindle nose A2-11
Spindle bore 104 mm

Milling spindle drive power 37 kW
Milling spindle speed 10,000 rpm

40 tool slots
Max. tool diameter 135/260 mm
Max. tool length 500 mm

3-jaw chuck Schunk 500 mm
Automatic opening and closing of clamping jaws
Clamping force adjustment high/low via M-code
Programmable NC tailstock
Tailstock forward/back via foot switch
Tailstock extension 150 mm
Hydraulic steady rest SMW Autoblok RX 5
Max. clamping range 430 mm
Mayfran Concep 2000II coolant system
Double switching filter
70 bar high pressure pump
3 pressure stages
Hinged belt chip conveyor
Tooleye for lining up to max. 24″
Torque support for angle bracket
Preparation for flash tool multi-compartment holder
Synchronized thread cutting
Re-thread function
Turn-milling under Mazatrol
5-axis machining package for Smooth X
EIA/ISO 5-axis simultaneous machining
Tool tip control 5-axis simultaneous
Spline fine interpolation
5-axis spline interpolation
G00 slope constant
