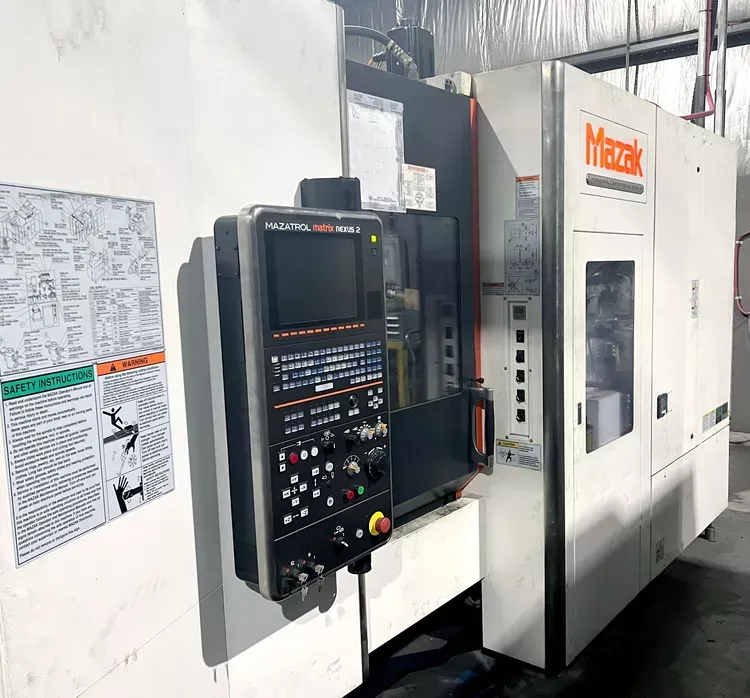

Mazak HCN-4000III 4 Axis

MAZAK HCN-4000III
2014

Pallet size length 15.75"
Pallet size width 15.75"
Number of pallets 2
Pallet weight capacity 881 lb
Pallet surface to spindle center 3.15"–27.95"
Pallet center to spindle gage line 2.76"–27.96"
Maximum workpiece dimensions 24.8" x 35.43"
X-axis travel 22.05"
Y-axis travel 24.8"
Z-axis travel 25.2"
B-axis indexing 0.001°
Rapid traverse X-axis 2,362 ipm
Rapid traverse Y-axis 2,362 ipm
Rapid traverse Z-axis 2,362 ipm
Cutting feed rate 2,362 in/min
Spindle speed 18,000 RPM
Spindle taper 40 CT
Main motor power 40 hp
Automatic tool changer 60
Tool diameter 3.74", 5.9"
Tool length 16.53"
Tool weight 26 lb
Tool change time 1.2 sec
Machine weight 21,000 lb
Control MAZAK MATRIX 2 CNC color control
Mazatrol Matrix 2 CNC conversational control
Background tool path check
Thru spindle coolant system 1000 PSI
Coolant system Superflow V8M/1000
Synchronous tapping
Spindle chiller
Auto pecking cycle with load monitoring
Renishaw probe MP 600
Auto tool length measurement
Rear discharge chip conveyor
Adaptive feedrate control
Tool life monitoring
EIA, spiral, EIA 3D comp, rotation, geometric scaling
Extended data I/O
Shape compensation
Thread and inverse time functions
Auto ATLM
Polar coordinate input
Comparison stop
G54.1
Inch/metric mode
G00 slope constant
Variable 600 sets
EIA helical tap
EIA helical pattern
Tilted work plane
Pitch error compensation
All available manuals
