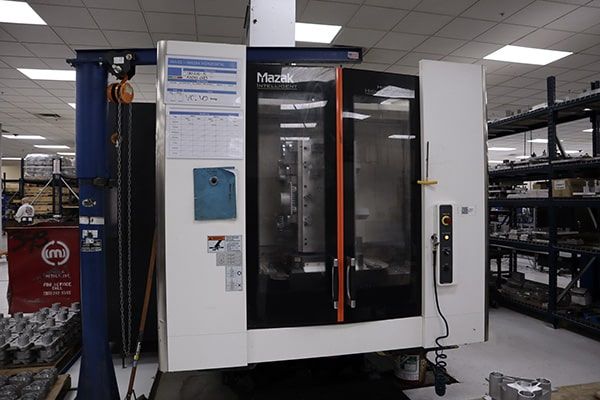

Mazak HCN-5000-III 4 Axis

MAZAK HCN-5000-III
2014

Pallet size 19.69 in x 19.69 in
Number of pallets 2
Pallet capacity 1543 lb
Distance from pallet surface to spindle center 3.94 in – 32.68 in
Distance from pallet center to spindle gage line 2.76 in – 34.25 in
Max workpiece diameter 31.50 in
Max workpiece height 39.37 in
X-axis travel 28.74 in
Y-axis travel 28.74 in
Z-axis travel 31.50 in
B-axis travel 0.001° (360000 positions)
Rapid traverse X 2362 in/min
Rapid traverse Y 2362 in/min
Rapid traverse Z 2362 in/min
Cutting feed rate 2362 in/min
Spindle speed 14000 rpm
Spindle taper #40 CT Big Plus
Spindle motor 40 hp
Tool changer capacity 160
Max tool diameter 3.74 in
Max tool length 20.08 in
Max tool weight 26.46 lb
Tool change time 2.6 s
Machine weight 26411 lb
Machine dimensions 194.02 in x 96.22 in x 110.75 in
Control Mazatrol Matrix Nexus 2
High hinge chip conveyor
Coolant through spindle 300 psi
Renishaw probe
Tool presetter
Full 4th axis
Mist collector
160-tool extended capacity
2 tombstones included
Chiller unit
