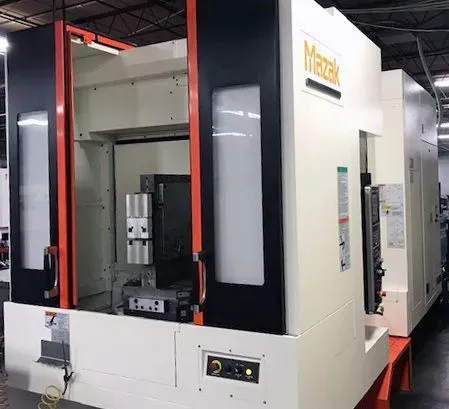

Mazak HCN 5000II 4 Axis

MAZAK HCN 5000II
Year: 2013

Pallet size L × W: 19.69″ × 19.69″
Number of pallets: 2
Pallet weight capacity: 1,102 lb
Pallet surface‑to‑spindle center distance: 2.76″–34.25″
Pallet center‑to‑spindle gage line: 3.94″–32.68″
Workpiece capacity: 31.5″ × 39.37″
X-axis travel: 28.74″
Y-axis travel: 28.74″
Z-axis travel: 31.5″
Rapid traverse (X/Y/Z): 2,362 IPM
Cutting feed rate: 2,362 in/min
Spindle speed: 12,000 RPM
Spindle taper: #40
Spindle motor: 40 HP
Automatic tool changer: 120‑position
Tool diameter (with full pockets): 3.74″
Tool diameter (with empty adjacent pockets): 6.94″
Max tool length: 16.54″
Max tool weight: 26 lb
Machine weight: 27,000 lb
Control: Mazatrol MATRIX CNC color control

USB interface (2 ports)
Cardbus interface (2 ports)
LAN port
EIA/ISO programming
Synchronized tapping (SYNC tapping)
Additional workpiece coordinate systems
Inch/metric capable
Auto tool length measurement & breakage detection
Niagara flood coolant system
Ball‑screw coolers (X/Y/Z)
Spindle chiller & hydraulic unit
Auto power‑off
EIA, spiral, EIA 3D comp, rotation, geometric, scaling, external data I/O
Shape compensation, threading, inverse time, polar coordinate input, comparison stop
Auto ATLM, G54.1 coordinate system
Synchronized mill tapping
Variable 600 memory sets
EIA helical tap, EIA pattern cycle, tilted working plane
Through‑spindle coolant 1,000 PSI
Prepped for Renishaw MMS‑B optical OMP 60 probe
Includes Renishaw OMP 60 probe
Auto pecking cycle with load detection
Cyber tool management upgrade option
120‑position automatic tool changer
