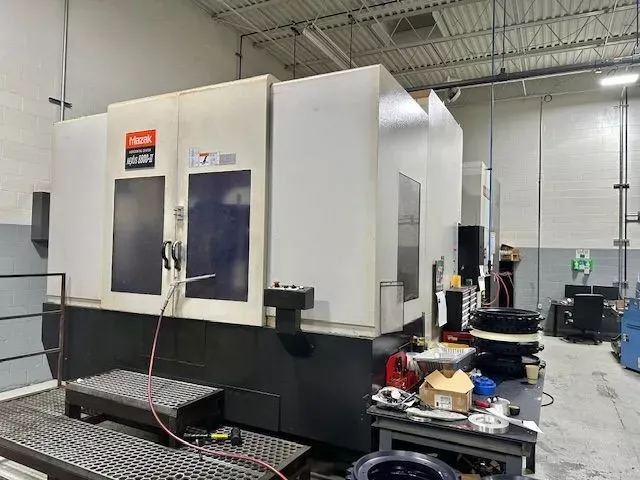

Mazak HCN 8800 II 4 Axis

X-axis travel 55.12"
Y-axis travel 47.24"
Z-axis travel 52.17"
Rapid traverse X 2,362 in/min
Rapid traverse Y 2,362 in/min
Rapid traverse Z 2,362 in/min
B-axis travel .001
Control CNC (MAZATROL MATRIX NEXUS color control)
Pallet size length 31.5"
Pallet size width 31.5"
Number of pallets 2
Pallet weight capacity 4,850 lb
Pallet surface to spindle center 3.94"–51.18"
Pallet center to spindle gage line 3.94"–56.1"
Workpiece dimensions 43.1" × 53.2" height
Spindle speed 8,000 RPM
Spindle taper 50
Number of ranges 2
Main motor 50 hp
Automatic tool changer 60
Tool diameter 4.92", 9.84"
Tool length 24.8"
Tool weight 66 lb
Machine weight 66,138 lb

Machine equipped with
Chip conveyor
Matrix Nexus CNC color control
USB interface (2-port)
Cardbus interface (2-port)
LAN port
Add EIA/ISO
Synchronous tapping
G00 slope constant
Additional workpiece coordinates
Inch/metric
Auto tool length measurement and breakage detection
Flood coolant
Coolers for ballscrews XYZ
Preparation for probe
Spindle chiller
Hydraulic unit
NC rotary table (360,000 positions)
Auto power off
EIA, spiral, EIA 3D comp, rotation, geometric, scaling, external data I/O
Shape comp, thread, inverse time, polar coordinate input, comparison stop
Auto ATLM
G54.1
Synchronous mill tapping
Inch/metric G00 slope constant
Variable 600 sets
Helical tap
Pattern cycle
Tilted work plane
5th axis comp
Pitch error comp
High pressure coolant
