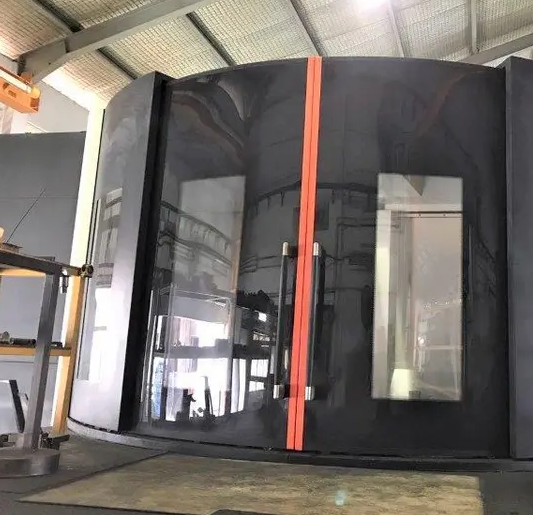

Mazak INTEGREX E-RAMTEC V/10 6 Axis

X-axis travel 73.82"
Y-axis travel 41.73"
Z-axis travel 57.09"
W-axis travel 35.43"
Rapid traverse X/Y/Z 1654/1181 IPM
B-axis travel 150°
C-axis travel 360°

Max workpiece diameter 78.74"
Max workpiece height 56.69"
Distance center B-axis rotation to pallet top 3.94" to 61.02"
Distance spindle nose to pallet top (B-axis = 0°) -7.87" to 49.21"

Mazatrol Matrix 2 5-Axis Control
EIA
High smoothing control
Spiral
EIA 3D comp
Rotation, geometric
Scaling
EXT-data I/O
High-speed
Shape comp
Thread, dynamic comp
3D
Coordinate rotation
Auto TLM
Polar coordinates
Comparison stop
Sync control
Spline
G65.1
Sync mill tapping
Inch/mm convert cylinder
Simultaneous 5-axis
EIA helical tap cycle
EIA pattern cycle
Tilted working
Table unbalance detect
5-axis tool comp
Auto pecking
Tool center-point
Thread start point comp
Re-thread
Program memory expansion
Mill-turning Mazatrol
Thread cut-speed override
5-axis spline

Pallet changer 2 pallets 55"
Pallet changer system rotary type
Pallet turning spindle 300 RPM
Pallet load capacity 11023 lbs
Pallet changer time 25 sec

Mill spindle nose type 7/24 taper No.50
Mill spindle speed 25–10000 RPM
Mill spindle speed ranges 2 steps
Mill spindle bearing ID 3.94"
Mill spindle drive motor 50 HP

Ram spindle nose type HSK-63
Ram spindle speed 3000 RPM
Ram spindle drive motor 10 HP
Ram tool storage capacity 40

Machine dimensions 260" x 385" x 205" tall
Machine weight 127000 lbs

Features
ONLY 2500 hours
Automatic pallet changer
120-position automatic tool changer
Chip conveyor
Coolant system
Laser part probing system
