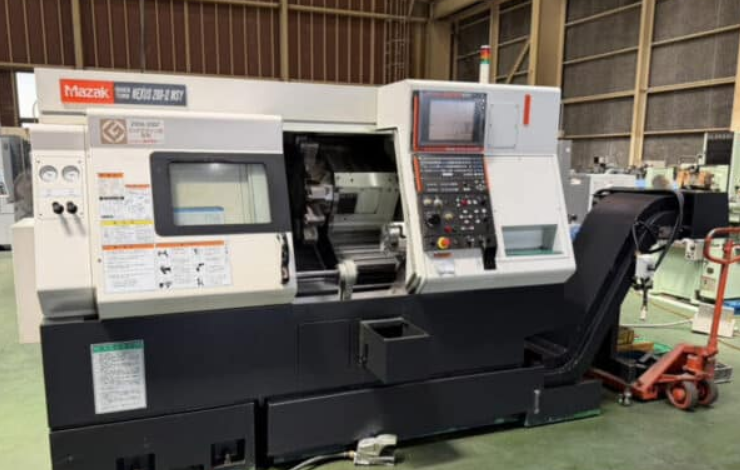

Mazak Matrix Nexus 5000 rpm Nexus 200MSY-II 3 Axis

Travel X: 9.055 in
Travel Y: ±2 in
Travel Z: 22.63 in

Control: Matrix Nexus
Chip Conveyor
Maximum Swing: 26.58 in
Standard Machining Diameter: 10.87 in
Maximum Machining Diameter: 14.75 in
Spindle Motor Power: 35 HP
Bar Capacity: 2 in

Spindle Speed: 5000 rpm
Spindle Nose: A2-6
Spindle Bore: 3 in

Second Spindle Chuck Size: 6 in
Second Spindle Nose: A2-6
Second Spindle Speed: 6000 rpm
Second Spindle Power: 10 HP

Tool Capacity: 12 Positions
Tool Shank Size: 1.0 × 1.0 in

Milling Spindle Power: 7.5 HP
Milling Spindle Torque: 26 ft/lbs
Milling Spindle Speed: 4500 rpm
Turret Index Time: 0.2 / 0.6 sec
