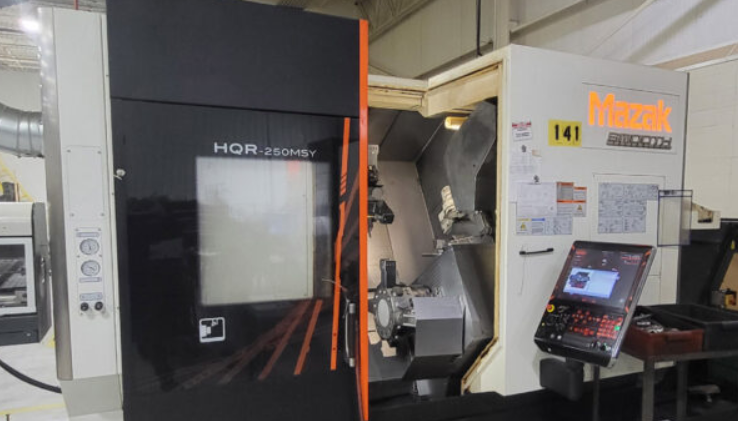

Mazak MAZATROL SMOOTH G CNC Variable Hyper Quadrex 250MSY 7 Axis

Travel X1: 8.2 in
Travel Y1: ±2.0 in
Travel Z1: 29.875 in
Travel X2 Lower: 5.5625 in
Travel Y2 Lower: +0.75 / -2.0 in
Travel Z2 Lower: 32.125 in
Travel W: 34.075 in
Control: MAZATROL SMOOTH G CNC
Parts Catcher with Side Exit Conveyor
Chip Conveyor
LNS Quick Load Servo S3T Barfeed
Maximum Swing Over Upper Turret: 14.57 in
Maximum Swing Over Lower Turret: 12.6 in
Maximum Machining Diameter Chucking Upper: 13.54 in
Maximum Machining Diameter Chucking Lower: 8.7 in
Maximum Machining Length: 33.9 in
Maximum Distance Between Chuck Jaws: 33.86 in
Main Spindle Preparation for BB210 10 in 3-Jaw or Collet Chuck
Maximum Bar Capacity: 3.15 in
Turret Type: 12 Position Drum VDI
