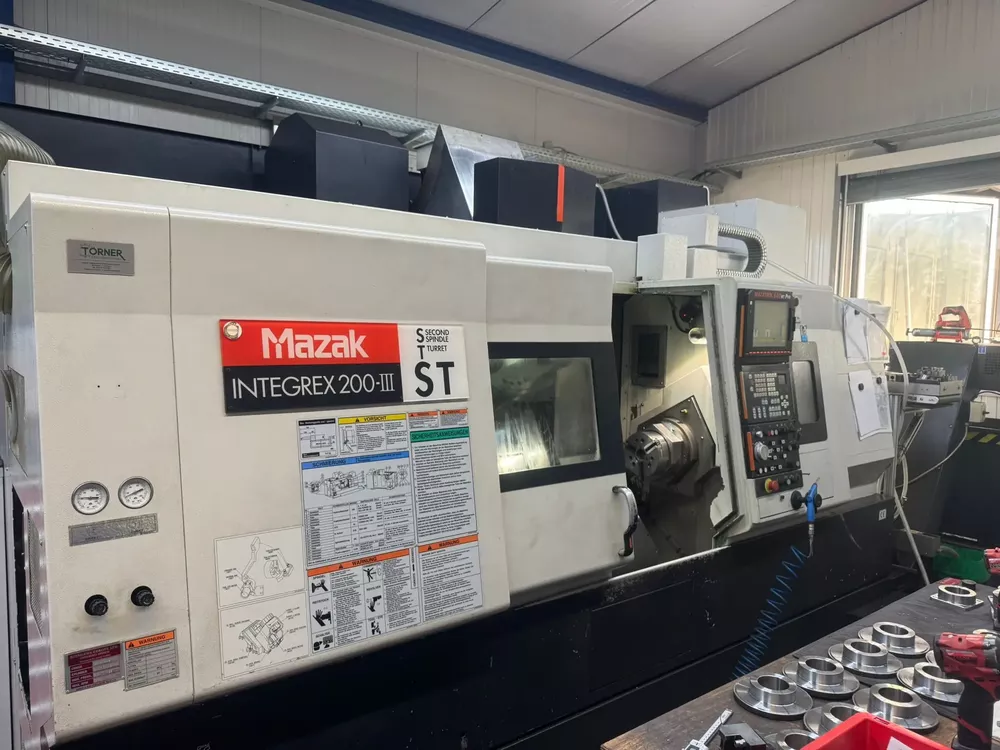

Mazak Mazatrol 640 MT Pro 4600 INTEGREX 200 III ST 7 Axis

Control unit: Mazatrol 640 MT Pro
Max rotary diameter (mm): 660
Max turning length (mm): 1045

Travel X1-axis (mm): 580
Travel X2-axis (mm): 150
Travel Y-axis (mm): 160
Travel Z1-axis (mm): 1045
Travel Z2-axis (mm): 1010
Travel W-axis (mm): 1050
B-axis (°): -30 to 210
Rapids X/Y/Z/W (m/min): 50/40/50/30

Main spindle power output (kW): 22
Main spindle max speed (rpm): 4600
Main spindle C-axis: Yes
Sub spindle power output (kW): 18.5
Sub spindle max speed (rpm): 5000
Sub spindle C-axis: Yes
Milling spindle drive power (kW): 18.5
Milling spindle max speed (rpm): 12000
Milling spindle B-axis (°): 0.0001
Milling spindle interface: Capto C6
Tool magazine capacity: 40 tools
Max tool diameter (mm): 90/125
Max tool length (mm): 300
Max tool weight (kg): 10
Lower turret type: Drum turret
Tool stations: 9
Swarf conveyor: Yes
Tooleye: Yes
High pressure pump: 15 bar
Milling spindle synchronized tapping: Yes
5-axis simultaneous machining: Yes
Preparation for Multi- and Flash Tool: Yes
Barfeeder interface: Yes
Conveyor belt for finished parts: Yes
Preparation Renishaw System: Yes
3-jaw chuck for main and counter spindle: Yes
Weight (kg): 12000
