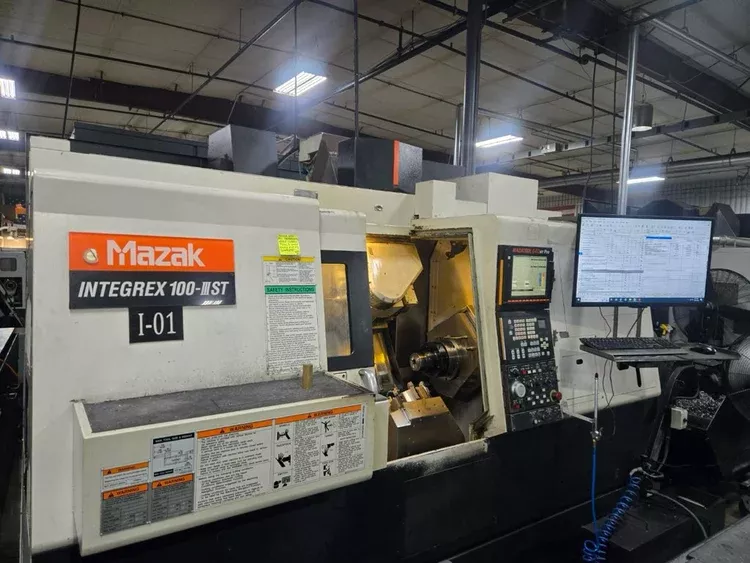

Mazak Mazatrol 640MT Pro CNC Control 6000 RPM 100IIIST 6 Axis

Mazak 100IIIST
2005

Swing Over Bed: 21.46"
Turning Diameter: 21.46"
Turning Diameter Lower Turret: 15.75"
Turning Length: 29.65"

Distance Between Spindles: 29.65"
Chuck Size 1: Collet
Chuck Size 2: Collet
Spindle Nose 1: A2-5
Spindle Nose 2: A2-4
Spindle Bore Diameter 1: 2.4"
Spindle Bore Diameter 2: 2.4"
Bar Capacity 1: 2.0"
Bar Capacity 2: 0

Spindle Speed 1: 6000 RPM
Spindle Speed 2: 6000 RPM
Spindle Horsepower 1: 15 HP
Spindle Horsepower 2: 15 HP

B-Axis Head Indexing: 225°
B-Axis Milling Spindle Speed: 12,000 RPM
B-Axis Milling Spindle Taper: KM
B-Axis Milling Spindle Horsepower: 7.5 HP

Automatic Tool Changer: 40 tools
Tool Diameter: 3.54"
Tool Length: 7.87"
Tool Weight: 8.8 lbs

X-Axis Travel X1: 16.14"
X-Axis Travel X2: 8.66"
Z-Axis Travel Z1: 31.69"
Z-Axis Travel Z2: 30.71"
Y-Axis Travel: 5.51"
C-Axis Indexing 1: 0.0001°
C-Axis Indexing 2: 0.001°
W-Axis Travel (Sub Spindle): 31.30"

Rapid Traverse Rate X1: 1181 IPM
Rapid Traverse Rate X2: 1181 IPM
Rapid Traverse Rate Y: 1024 IPM
Rapid Traverse Rate Z1: 1299 IPM
Rapid Traverse Rate Z2: 1299 IPM

Turret Tool Positions: 9
Machine Weight: 18,078 lbs
EIA/ISO Compatible
EIA Programming Changeover
B-Axis Angle Positioning Turning
Background Path Check
Multi Tool Holder
Flash Tool Support
Shape Compensation
Y-Axis Control
Synchronized Mill Tap

Thread Start Point Compensation
Direct Drawing Size Input
User Macro Support
600 Macro Variables
User Macro Interrupt
Work Coordinate Select
Polar Coordinate Input
Cylindrical Interpolation
Tool Center Point Control
Simultaneous 5-Axis Control
IEA Helical Interpolation
EIA Coordinate Rotation
B-Axis Control
Enhanced Y-Axis Mazatrol Face 1 and Face 2
Rotary Axis Sub Micron Control
EIA Helical Tapping
Sub Spindle 1/1000° Positioning
Sub C-Axis Control
Rotary Axis Shape Compensation
Second Turret Mazatrol
Re-Thread Function
Auto Parts Catcher

Coolant Through Mill Head with Filtration
Mazatrol 640MT Pro CNC Control
213 PSI Coolant Through Mill Head
71 PSI Flood Coolant Lower Turret
6" 3-Jaw Thru-Hole Chuck (BB-06) with 2" Bar Capacity
6" 3-Jaw Hydraulic Non-Thru-Hole Rear Chuck
B-Axis .0001° Incremental Indexing
B-Axis 5° Coupling Clamp
Auto Chuck Jaw Open/Close Confirmation (1st and 2nd Spindle)
Automatic Tool Length Measurement
