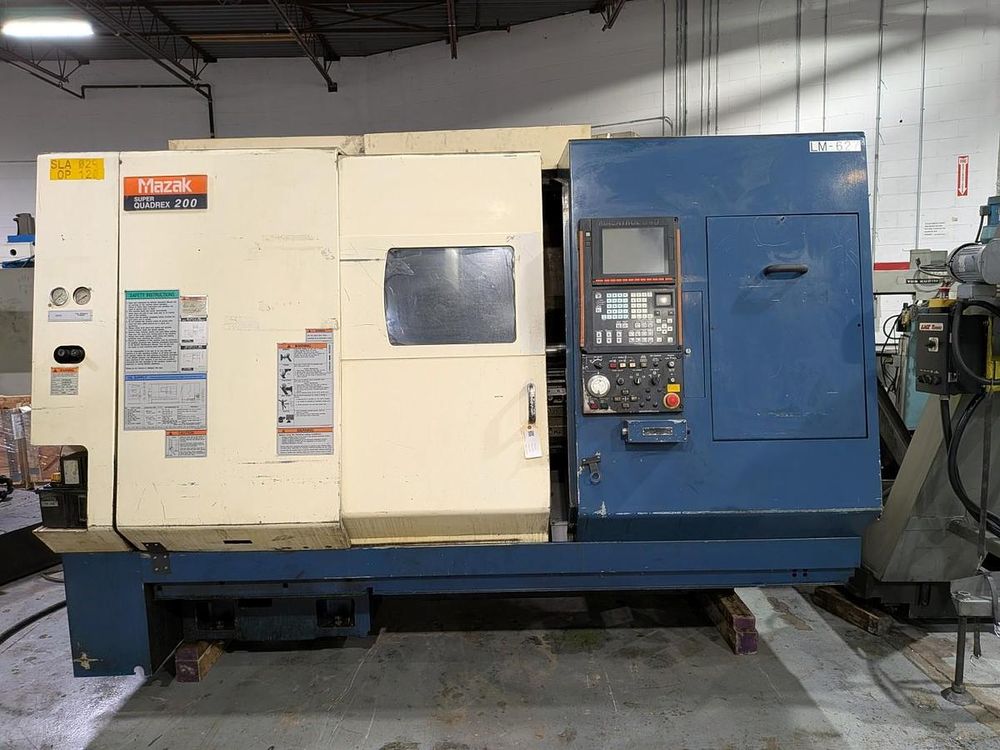

Mazak Mazatrol 640T CNC control 5000 rpm SQR-200 5 Axis

X-axis stroke (Upper): 190 mm
Z-axis stroke (Upper): 645 mm
X-axis stroke (Lower): 150 mm
Z-axis stroke (Lower): 630 mm
C-axis feedrate: 400 mm/min
Mazatrol 640T CNC control
Bar capacity: 51 mm
Maximum swing: 585 mm
Standard machining diameter: 264 mm
Maximum machining diameter (Upper turret): 350 mm
Maximum turning length: 613 mm (solid)
Maximum turning length: 610 mm (hollow)
Spindle speed: 5,000 rpm
Spindle bore: 61 mm
Maximum torque: 412 Nm
Chuck size: 8 inch
Upper turret stations: 12
Lower turret stations: 8
Rapid traverse (Upper X/Z): 30 / 30 m/min
Rapid traverse (Lower X/Z): 30 / 20 m/min
Tailstock spindle taper: MT No. 4
Tailstock stroke: 520 mm
Machine weight: 6,830 kg
Chip conveyor
Coolant tank
Tailstock
