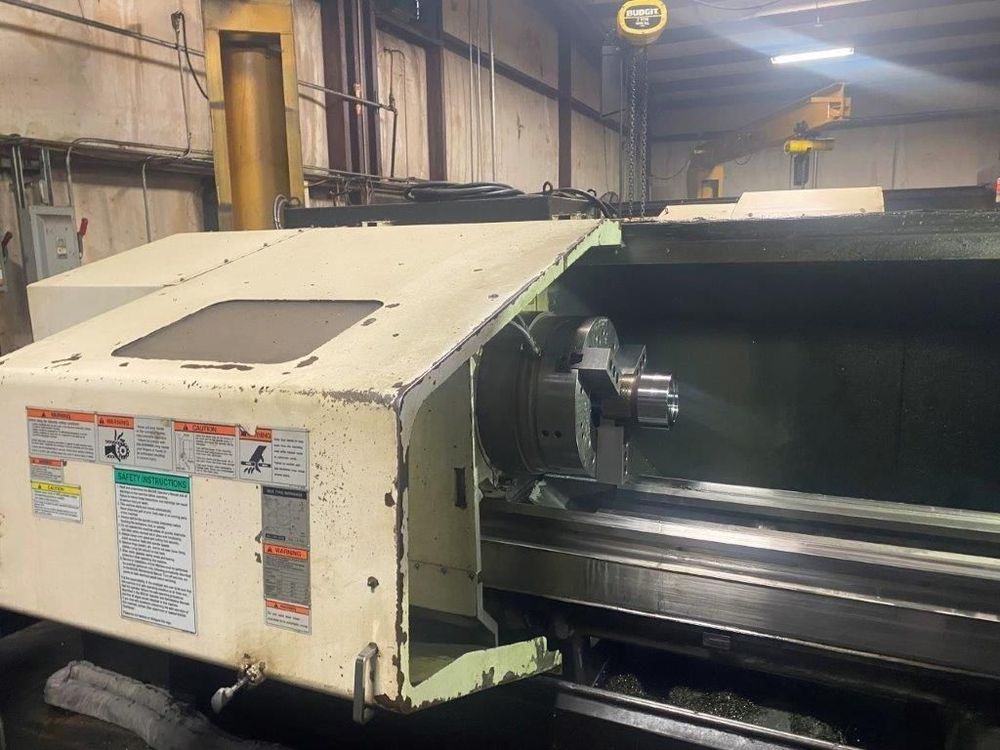

Mazak Mazatrol Fusion 640T/CRT 1000 rpm M5N/2000 Big bore 2 Axis

Mazak M5N/2000 Big bore
2012

Control: Mazatrol Fusion 640T/CRT
Capacity: Swing 24.02 "
Swing Over Cross Slide 12.99 "
Distance Between Centers 81.89 "

Spindle: Spindle Speed: Minimum (RPM) 5 rpm
Maximum 1000 rpm
Spindle Bore 7.1 "
Main Motor 30 hp
Spindle Nose A2-15

Turret: Number Of Positions 8 + 6
X-Axis Travel 22.05 "
Z-Axis Travel 80.91 "

Tailstock: Quill Diameter - "
Quill Travel 5.12 "
Taper 5 MT

Chuck: Diameter 18 "
Hole Thru 7 "

Equipped With:
Mazatrol Fusion 640T 2-Axis CNC Control with Color Monitor
7.1" Big Bore Option
18" 3-Jaw SMW Air Chuck on Front
3-Jaw Manual Chuck on Rear
Tailstock
Coolant System with Tank and Pump
Multi Tap Transformer
PCMCI Interface - 2 Slots
IC Memory Card Interface
Background Tool Path Check
All Available Manuals and Tool Holders
