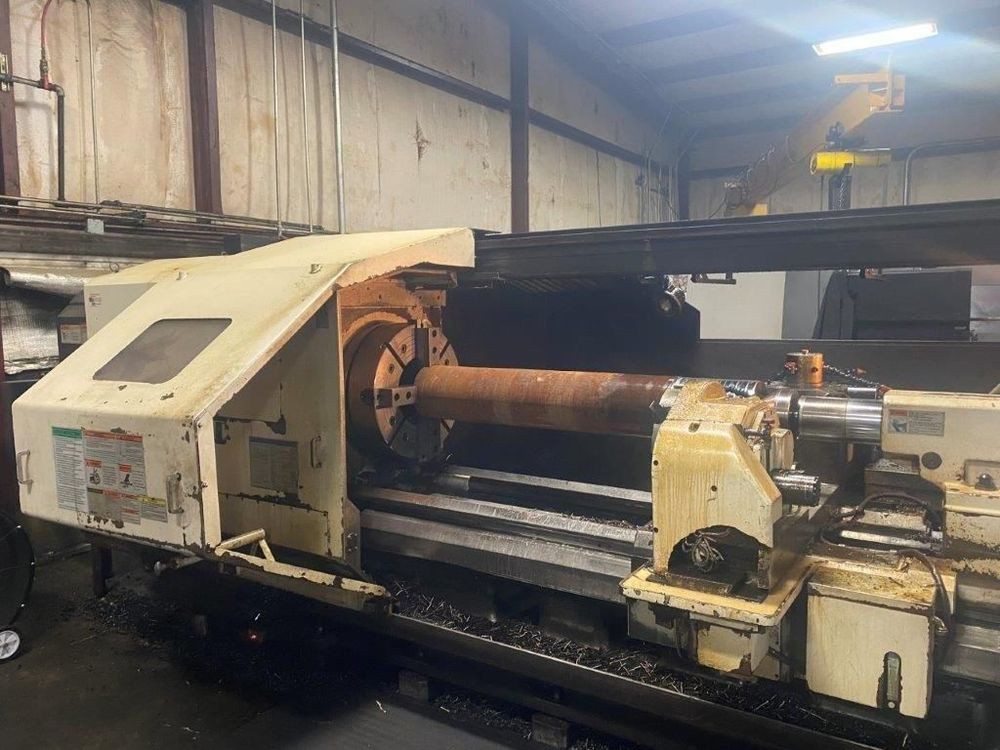

Mazak Mazatrol Fusion 640T/CRT 500 rpm Powermaster Universal 2 Axis

Mazak Powermaster Universal
2013


Control: Mazatrol Fusion 640T/CRT
Capacity: Swing 34 "
Swing Over Cross Slide 21.65 "
Maximum Machining Diameter 34 "
Distance Between Centers 122.5 "

Spindle: Spindle Speed: Minimum (RPM) 0 rpm
Maximum 500 rpm
Spindle Bore 12.5 "
Main Motor 60 hp
Spindle Nose A2-20

Turret: Number Of Positions 8 + 6
X-Axis Travel 25.79 "
Z-Axis Travel 123 "

Tailstock: Quill Diameter 5.9 "
Quill Travel 6.3 "
Taper 5 MT

Chuck: Diameter 24 "
Hole Thru 12.5 "
Number of Jaws 4

Equipped With:
Mazatrol Fusion 640T 2-Axis CNC Control with Color Monitor
12.5 Big Bore Option
Heavy Duty Tailstock
USB Port
RS-232 Port
Coolant System with Tank and Pump
All Available Manuals and Tool Holders
24" 4-Jaw Manual Chuck with 12.5" bore on front (No rear chuck)
Chip Conveyor
