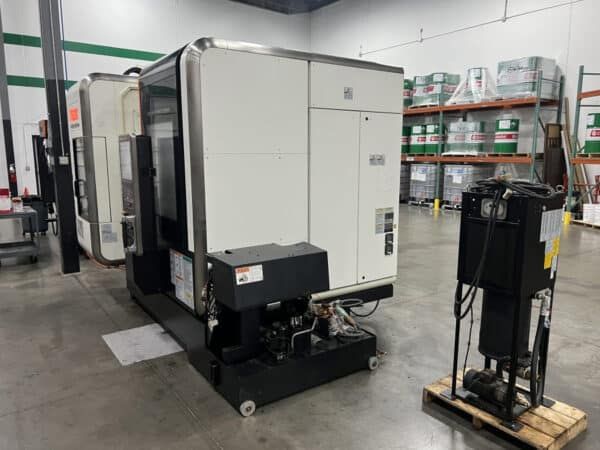

Mazak Mazatrol Matrix 2 Control 6000 RPM INTEGREX I100S 5 Axis

X-Axis Travel: 17.72"
Y-Axis Travel: 8.27" (+/- 4.13")
Z-Axis Travel: 35.59"
W-Axis Travel: 35.55"
C-Axis Positioning: .0001

Rapid Traverse X: 1575 IPM
Rapid Traverse Y: 1575 IPM
Rapid Traverse Z: 1575 IPM
Rapid Traverse C: 555 IPM

Through Coolant
Flood Coolant Simul-Flowable (213 PSI)
Renishaw Work Measuring Probe
Maximum Program Size: 8MB
Hobbing Function
Tool Radius Compensation / 5-Axis (G41.5 / G42.5)
5-Axis Machining Package
Mazacc-2D Software
Mazacc-3D High-Speed
Shape Compensation
High Smoothing Control
EIA/ISO Function Simultaneous 5 Axes
Tool Tip Point Control
5-Axis Spline Interpolation

Maximum Bar Size: 2"
Maximum Swing: 20.9"
Maximum Cutting Diameter: 19.7"
Maximum Machining Length: 33.6"

Main Spindle Chuck: 6"
Main Spindle Bore: 2"
Main Spindle Nose: A2-5
Main Spindle Taper: KM 63
Main Spindle Speed: 6000 RPM
Main Spindle Power: 10/15 HP

2nd Spindle Chuck: 6"
2nd Spindle Speed: 6000 RPM
2nd Spindle Power: 10/15 HP

Milling Spindle Speed: 12,000 RPM
Milling Spindle Power: 7.5/10 HP
36 ATC

Maximum Tool Diameter: 3.54"
Maximum Tool Diameter Adjacent Pockets Empty: 5.12"
Maximum Tool Length: 9.84"
Maximum Tool Weight: 11 lbs
Chip Conveyor Side Disposal
