Mazak Mazatrol Matrix 3,300 rpm INTEGREX 400 IVS 5 Axis

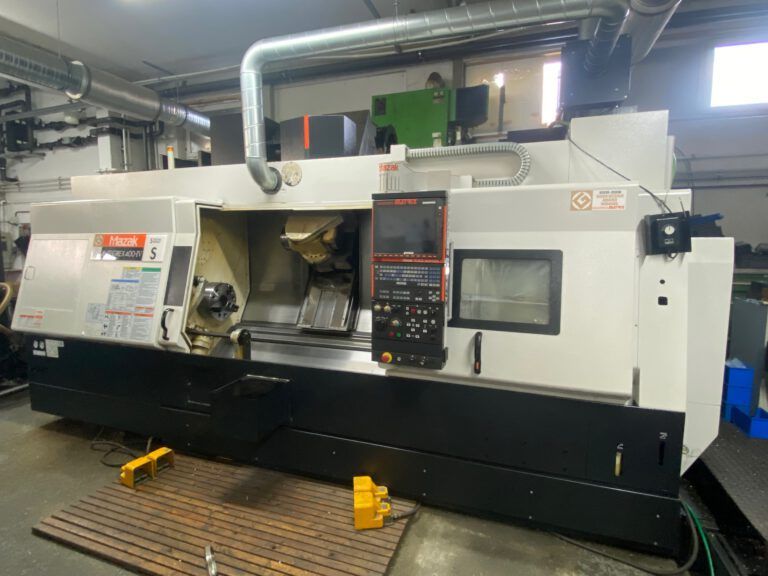

MAZAK INTEGREX 400 IVS
Construction year 2007

control Mazatrol Matrix
Max. Rotary diameter 760 mm
Max. Turning Length 1.524 mm

movements
X-axis: 630 mm
Y-axis: 230 mm
Z-axis: 1,585 mm
W-axis: 1,530 mm
B-axis -30 to 210°

rapids
X/Y/Z/W 50/40/50/30 m/min

Main spindle
Power output: 30 kW
max. Spindle speed: 3,300 rpm
C-axis
max. Bar capacity: 102 mm

Sub spindle
Drive power: 26kW
max. spindle speed: 4,000 rpm
C-axis

Milling spindle
Drive power: 18.5 kW
Max. spindle speed: 12,000 rpm
B-axis: 0.0001°
Capto C6

Tool magazine / ATC
80 tool positions
max. tool diameter: 90/125 mm
max. tool length: 400 mm
max. Tool weight: 10 kg

additional equipment
Air and Coolant Blow Through the RH Spindle
High-pressure pump 70 bar 20 l/min . SPS with 7 pressure stages
Chip conveyor MAYFRAN CONSEP 2000 II 70 bar 20 l/min . SPS with 7 pressure stages
Barfeeder interface
Automatic parts catcher
Synchronized thread cutting
EIA/ISO 5-axis simultaneous machining
preparation Flashtool, Multitool
Tool Tip Control Simultaneous 5-axis
Shape compensation for rotating axes
Cylindrical interpolation
direct scale X-axis
Full C-axis sub spindle
1 pcs. 3-jaw chuck, Kitagawa B212
1 pcs. 3-jaw chuck, Kitagawa B210

weight
13.500 kg
