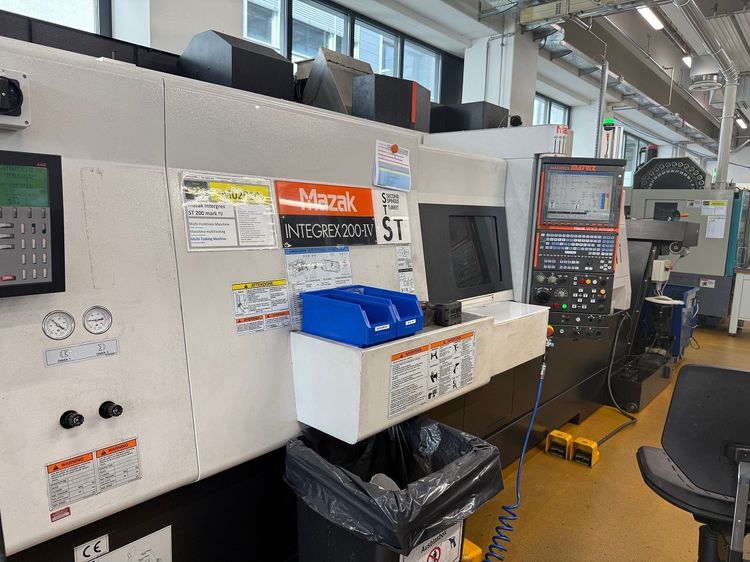

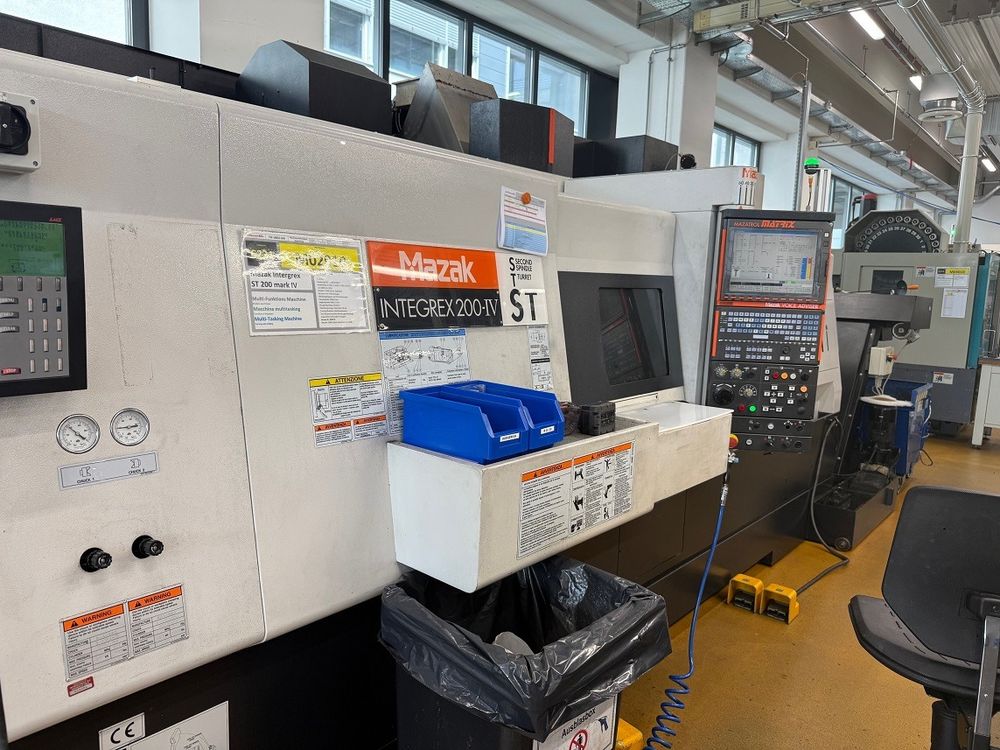

Mazak Mazatrol Matrix 4600 rpm INTEGREX 200-IVST 5 Axis

X-axis travel 580 mm
Y-axis travel 150 mm
Z-axis travel 1545 mm
W-axis travel 1490 mm
Rapid traverse X/Y/Z/W 50/40/50/30 m/min
B-axis -30° to 210°
C-axis main spindle
C-axis sub spindle
Control Mazatrol Matrix
5-axis simultaneous machining
Cylindrical interpolation
Synchronized tapping
Gear hobbing capability
Bar capacity 52 mm
Max turning diameter 660 mm
Max turning length 1495 mm
Main spindle speed 4600 rpm
Main spindle motor 22 kW
Sub spindle speed 5000 rpm
Sub spindle motor 18.5 kW
Milling spindle speed 12000 rpm
Milling spindle motor 18.5 kW
Tool magazine 40 positions
Max tool diameter 90/125 mm
Max tool length 300 mm
Max tool weight 10 kg
Lower turret 9 stations
Bar feeder interface
Parts catcher
Chip conveyor
High pressure pump 50 bar
Short bar loader LNS Quick Load Servo 3
Full C-axis gear spindle
Preparation for multi and flash tool
