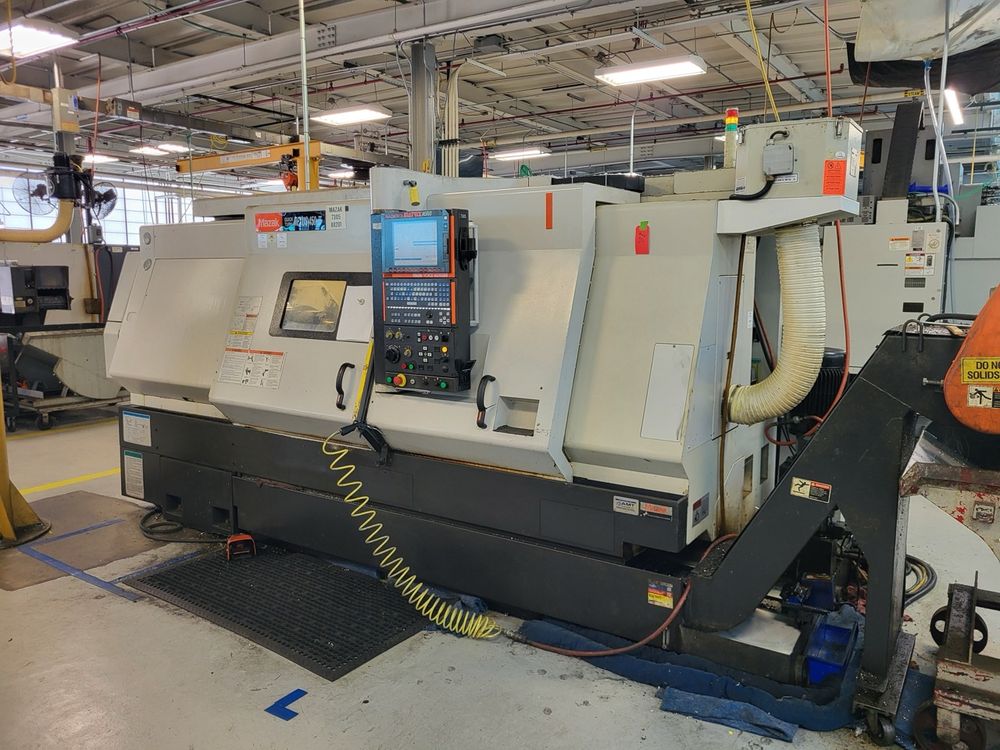

Mazak Mazatrol Matrix CNC 2000 rpm QTN 450-II 2 Axis

X-Axis Travel: 13.38 in
Z-Axis Travel: 42.12 in
Control: Mazatrol Matrix CNC
Tool Setter
High Pressure Coolant
Bar Capacity: 6.5 in
Maximum Swing: 33.26 in
Maximum Turning Diameter: 22.83 in
Maximum Turning Length: 48 in
Maximum Distance Between Centers: 40 in
Maximum Shaft Diameter: 18.25 in
Spindle Speed: 2000 rpm
Spindle Motor: 50 hp
Spindle Bore: 7 in
Spindle Nose: A2-15
Rapid Traverse X-Axis: 1181 ipm
Rapid Traverse Z-Axis: 1181 ipm
Chuck Size: 19 in
Turret Capacity: 24 Stations
Tailstock: MT#5
Tailstock Travel: 32.5 in
Chip Conveyor
Machine Dimensions: 144 × 90 × 80 in
Machine Weight: 19000 lb
