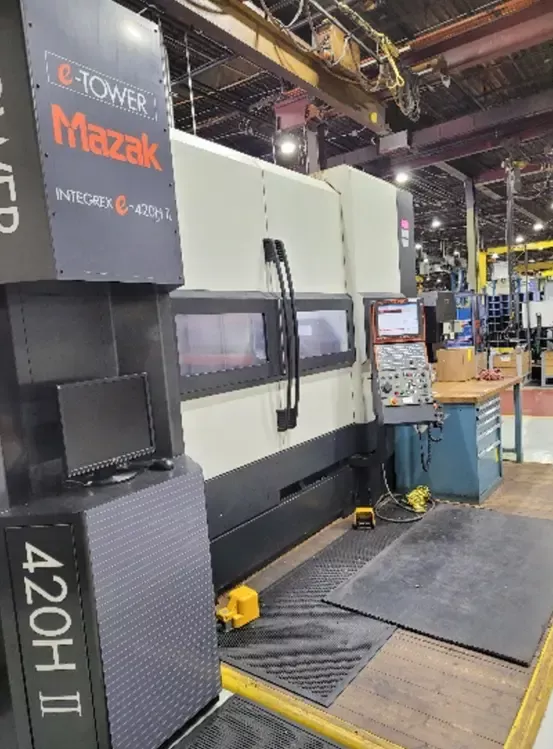

Mazak MAZATROL MATRIX CNC 4000 RPM INTEGREX e420II-HS 5 Axis

MAZAK INTEGREX e420II-HS
Year: 2007

Maximum swing: 26.38″
Maximum turning diameter: 24.02″
Maximum cutting length: 53″
Maximum swing over cross slide: 26.38″
Main spindle chuck size: 15″
Main spindle chuck type: Hydraulic
Main spindle bore diameter: 3.46″
Main spindle bar capacity: 3.0″
Main spindle speed: 4,000 RPM
Main spindle horsepower (continuous/30 min): 35 HP
Sub spindle bore size: 3.58″
Sub spindle chuck type: Hydraulic
Sub spindle speed: 0 RPM
Sub spindle horsepower (continuous/30 min): 35 HP
X-axis travel: 29.13″
Z-axis travel: 54.64″ / 30″
Y-axis travel: 16.14″
C-axis indexing: 0.0001°
B-axis head indexing: -30210°
B-axis milling spindle speed: 10,000 RPM
ATC magazine capacity: 90 tools
Control: MAZATROL MATRIX CNC
Chip conveyor: Yes

5-axis CNC operations
7 total axes
15″ main and sub hydraulic chucks
10,000 RPM milling spindle
Equipped with 90-tool ATC system
