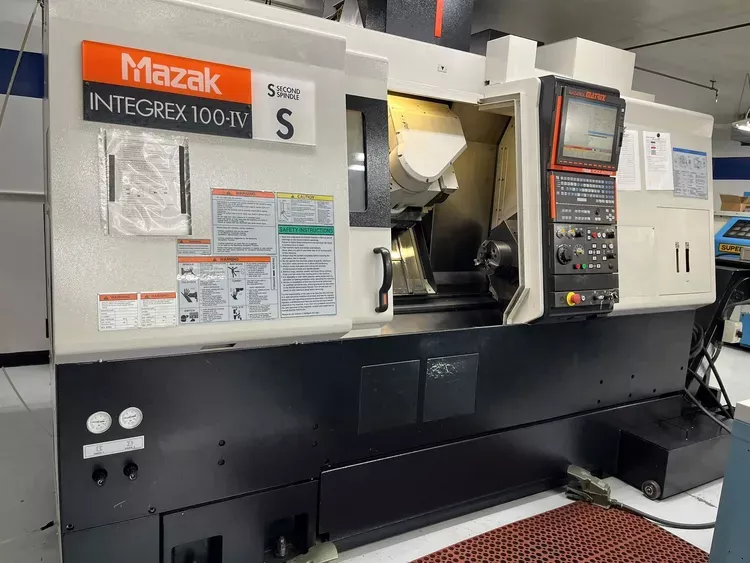

Mazak Mazatrol Matrix CNC control 6000 RPM INTEGREX 100-IVS 6 Axis

X-axis travel: 16.14 in
Y-axis travel: ±2.75 in
Z-axis travel: 31.69 in
W-axis travel: 31.3 in
B-axis rotation: 225 deg
C-axis speed: 555 RPM

Control type: CNC
Swing over bed: 21.46 in
Swing using Y-axis: 16.22–21.46 in
Swing over cross slide: 13.86 in
Maximum cutting diameter: 21.46 in
Maximum cutting length: 29.65 in
Distance between chuck faces: 31.18 in
Bar capacity: 1.625 in

Main spindle nose: A2-5
Main spindle bore: 2.4 in
Main spindle speed max: 6000 RPM
Main spindle power continuous: 10 HP
Main spindle power 30 min: 15 HP
Main spindle torque: 119 ft-lb

Sub spindle nose: A2-5
Sub spindle bore: 2.4 in
Sub spindle speed max: 6000 RPM
Sub spindle power continuous: 10 HP
Sub spindle power 30 min: 15 HP
Sub spindle torque: 119 ft-lb
Rotary tool spindle speed max: 12000 RPM
Rotary tool spindle power: 7.5 HP
Rotary tool spindle torque: 36.2 ft-lb
Chuck size: 2.4 in
Tool shank height: 0.75 in
Max boring bar diameter: 1.25 in
Max tool diameter all pockets full: 2.76 in
Max tool diameter adjacent pockets empty: 3.54 in
Max tool length: 7.87 in
Max tool weight: 8.8 lb
Floor space width: 118.9 in
Floor space length: 85.04 in
Machine height: 96.18 in
Total power required: 32.9 kVA
Air requirement pressure: 72 PSI
Air requirement flow: 24.7 CFM
Machine weight: 16314 lb
Rapid rate X-axis: 1181 IPM
Rapid rate Y-axis: 1024 IPM
Rapid rate Z-axis: 1299 IPM
Rapid rate W-axis: 1181 IPM

Features / Equipment:
Mazatrol Matrix CNC control
15 in color LCD
EIA/ISO code input
Slope constant function
Rotary axis shape compensation
Mazacc-2D software
Cylindrical coordinate function
Polar coordinate function
Synchronous tapping
Inch/metric conversion
CARDBUS interface
LAN port
USB interface
Live tooling
Y-axis control
Sub spindle
Chip conveyor
Cut feeder
