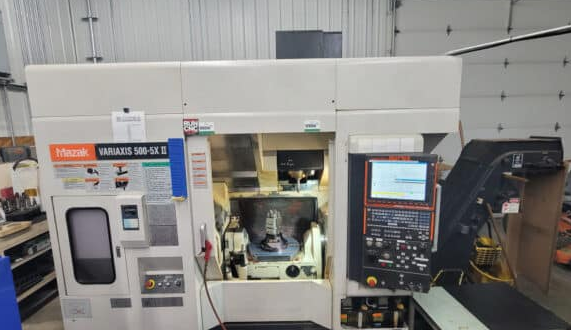

Mazak Mazatrol Matrix control 12,000 RPM VARIAXIS 500-5X-II 5 Axis

X-axis travel: 20.08 in
Y-axis travel: 20.08 in
Z-axis travel: 18.11 in
A-axis travel: -120° to +30°
C-axis travel: ±360°
Distance spindle nose to table top (horizontal): 7.48–25.59 in
Distance spindle nose to table center (vertical): 5.51–23.62 in
Mazatrol Matrix control
Full 5-axis capability
SuperFlow 1000 PSI through-spindle coolant
Chip conveyor
Probe
ATLM
Table size: 19.69 in x 15.75 in
Maximum table load: 661 lb
Maximum workpiece size: 19.5 in x 15.95 in
Maximum workpiece height: 15.95 in
Spindle nose: CAT40
Spindle power: 30/20 HP
Spindle speed: 12,000 RPM
Automatic tool changer capacity: 40 tools
Machine width: 110 in
Machine depth: 116 in
Machine height: 111 in
Machine weight: 16,500 lb
